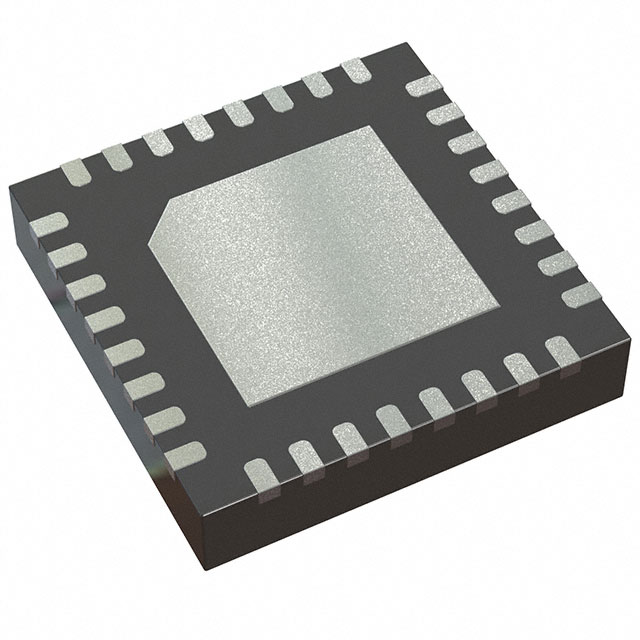

Commodity Model:MAX25221BATJ/V

Trade Name:MAX25221BATJ/V

Data Manual:MAX25221BATJ/V.pdf

Brand:Maxim

Particular Year:23+

Package:TQFN-32

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX25221BATJ/V
Package
TQFN-32
Describe
Automotive 4-Channel TFT-LCD Power Supplies with VCOM Buffer

Product Description

The MAX25221BATJ/V is a 4-channel TFT-LCD power supply IC that provides symmetrical positive AVDD and negative NAVDD supplies as well as VGON and VGOFF gate supplies. In addition, a VCOM buffer (output voltage range above and below ground) and a temperature measurement module (MAX25221/B/C) are integrated. The devices contain non-volatile memory so that all output values can be calibrated (up to five times) throughout the life of the device.


Device Features

High Integration

Synchronous boost provides 4.2V to 10.5V AVDD at up to 200mA

NAVDD inverter output up to -200mA

15mA VGON output (7.6V to 20.2V) from a 3x regulated charge pump

VGOFF (-18.2V to -5.6V) from regulated charge pump up to -15mA (charge pump multiplier)

Controlled sequencing during power-up and power-down of all rails

VCOM output range of +1V to -2.49V in 6.83mV steps (MAX25221/B/C)

NTC input for temperature measurement/compensation (MAX25221/B/C)

Low EMI

420kHz/2.1MHz switching frequency with spread spectrum

I2C control/diagnostic interface with FLTB (interrupt) outputs

UV diagnostics on all outputs

Multi-function

Non-volatile output voltage settings for AVDD/NAVDD, VGON, VGOFF, VCOM, and sequences

Programmed to support standalone operation mode

Compact 5mm x 5mm TQFN32 package

AEC-Q100 Class 1


Product Applications

Central information displays

Infotainment system displays

Instrument clusters

Associated Products

Model

Brand

Package

Quantity

Describe

RAA215300A2GNP

Renesas

QFN-56

2000

High-Performance 9-Channel PMIC Supporting DDR Memory with Built-In Charger and RTC

TPS53840RWZR

TI

QFN-35

2000

Enhanced high-current PMIC for DDR5 server MRDIMM

MAX77655AEWE

Maxim

WLP-16

1000

Professional Power Management (PMIC) Nano Power PMIC with 4 Output SIMOs Delivers Up to 1.25W Output Power

MAX25250ATPD/VY

Maxim

TQFN-20

1000

Professional Power Management (PMIC) ASIL B miniature PMIC for camera sensor support

MAX25250ATPC/VY

Maxim

TQFN-20

1000

Professional Power Management (PMIC) ASIL B miniature PMIC for camera sensor support

LPTM21-1AFTG237C

Lattice

237-LBGA

1000

In-System Programmable Hardware Management Controller

LPTM21-1AFTG237I

Lattice

237-LBGA

1000

In-System Programmable Hardware Management Controller

LPTM21L-1ABG100I

Lattice

100-LFBGA

1000

In-System Programmable Hardware Management Controller

STPM066S-V0Y

ST

VFQFPN-48

2000

Power management (PMIC) 48-VFQFPN (7x7)

STPM098-TR

ST

QFN

2000

Automotive Dual Digital 8-phase Controller with PMBus
