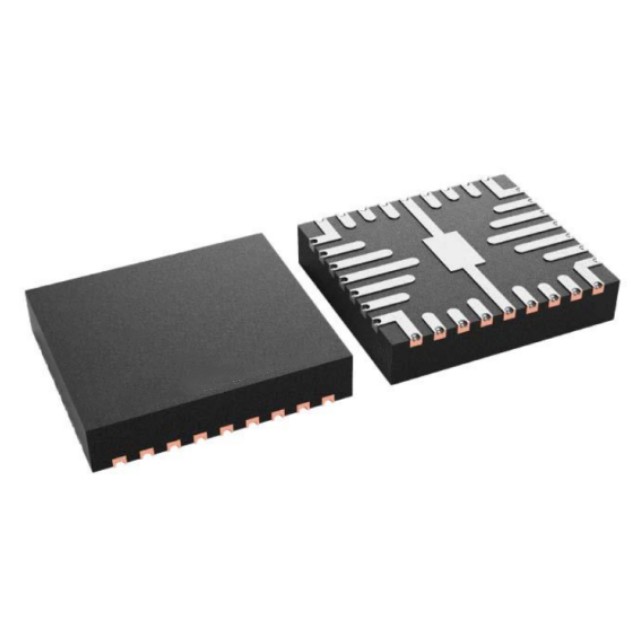

LP877442A9RXVRQ1 device is designed to meet the power management requirements of the AWR and IWR MMICs in various automotive and industrial radar applications. The device has three step-down DC/DC converters, a 5V boost converter and a 1.8V or 3.3V LDO. The LDO is powered from the boost and intended for xWR I/O supply. An SPI serial interface and enable signals control the device.
Features Of LP877442A9RXVRQ1
AEC-Q100 qualified with the following results:
Device temperature grade 1: –40°C to +125°C ambient operating temperature
Functional safety-compliant device
Developed for functional safety applications
Documentation available to aid ISO 26262 functional safety system design up to ASIL-C / SIL-2
Input supply overvoltage and undervoltage monitoring
Regulator output overvoltage and undervoltage monitoring
Overvoltage and undervoltage monitoring for one external rail
Q&A watchdog
Level or PWM error signal monitor (ESM)
BIST and CRC
Input voltage: 3.3V nominal (3V to 4V range)
Three low-noise step-down DC/DC converters:
Output voltage: 0.9V to 1.9V, 0.8V (BUCK3), 0.82V (BUCK3)
Maximum output current: 3A/ 3A/ 3A
Switching frequency: 4.4MHz, 8.8MHz, and 17.6MHz
5V boost converter
Maximum output current: 350mA
150mA LDO
Output voltage 1.8V or 3.3V
Output short-circuit and overload protection
Input overvoltage protection (OVP) and undervoltage lockout (UVLO)
Overtemperature warning and protection
Serial peripheral interface (SPI)
Applications Of LP877442A9RXVRQ1
Short and medium range corner radar
Long range front radar
Ultra-short range radar
Low ripple, low noise applications
