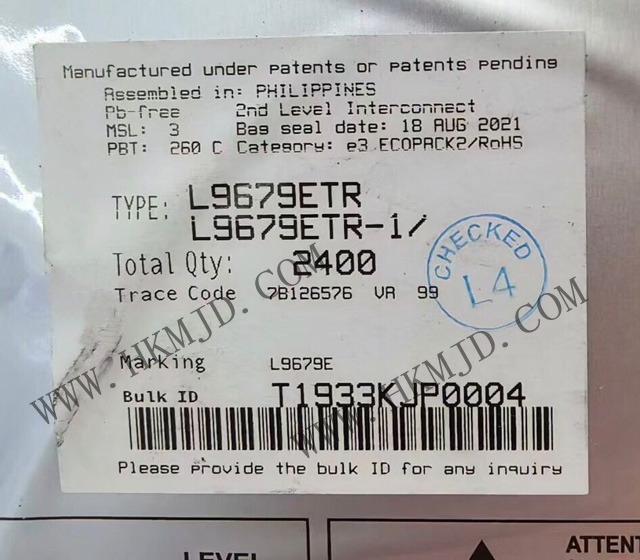

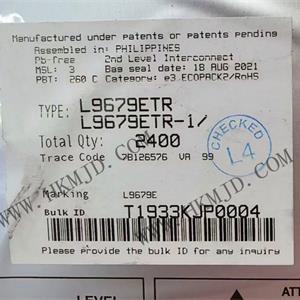

For picture reference, please see the specifications
< >

Commodity Model:L9679ETR

Trade Name:Power Management - Dedicated Type

Brand:ST

Particular Year:21+

Package:TQFP-48

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
L9679ETR
Package
TQFP-48
Describe
Automotive Extended Airbag IC

Product Description

The L9679ETR is a high-performance automotive airbag system expansion chip manufactured by STMicroelectronics. It is specifically designed for automotive airbag systems and offers features such as high-side/low-side drivers, remote sensor interfaces, configurable deployment profiles, current monitoring, and temperature sensors.


Product Features — L9679ETR

High-side/low-side drivers: 8-channel high-side/low-side drivers for deploying ignition tubes or explosive fuses.

Remote sensor interface: 4-channel remote sensor interface supporting the PSI-5 protocol.

Configurable deployment profiles: Configurable via the SPI interface, allowing deployment profiles to be set according to user specifications.

Current monitoring and temperature sensors: Built-in current monitoring functionality and temperature sensors ensure safe system operation.

High reliability: Compliant with AEC-Q100 standards, suitable for automotive applications.

Low-power design: Suitable for battery-powered automotive systems, extending system standby time.


Technical specifications — L9679ETR

Input voltage range: 4.5V to 40V

Output voltage range: 2.8V to 40V (adjustable)

Maximum output current: Up to 1A per channel

Operating frequency: 500kHz

Package type: TQFP-48 (7x7x1.0mm)

Operating temperature range: -40°C to 125°C

Quiescent current: Low quiescent current design helps extend system standby time


Application areas — L9679ETR

Automotive airbag systems: Used for deployment control and sensor interfacing in automotive airbag systems.

Automotive electronics: Suitable for automotive interior LED lighting, instrument panel backlighting, ambient lighting, etc.

Industrial control: Suitable for industrial applications requiring high reliability and precise control.

Medical devices: Suitable for medical devices requiring high-precision power management.
