The MAX25250ATPD/VY is a high efficiency quad output PMIC that integrates three DC-DC converters and a high PSRR LDO with OV/UV monitoring on all outputs.OUT1 is a 1A high voltage synchronous step-down converter that operates over a coaxial cable or automotive battery power supply.OUT2 and OUT3 low-voltage synchronous step-down converters operate over the OUT1 power supply and provide output voltages in the range of 0.8V to 3.9875V. OUT1 supply operation can provide output voltages in the range of 0.8V to 3.9875V. OUT2 can provide 1.2A current for high megapixel cameras and high speed serialisers.

Product Attributes

Current - Powered: 3mA

Voltage - Supply: 5V ~ 22V

Operating Temperature: -40°C ~ 125°C (TA)

Grade: Automotive Grade

Qualification: AEC-Q100

Mounting Type: Surface Mount, Wettable Flanks

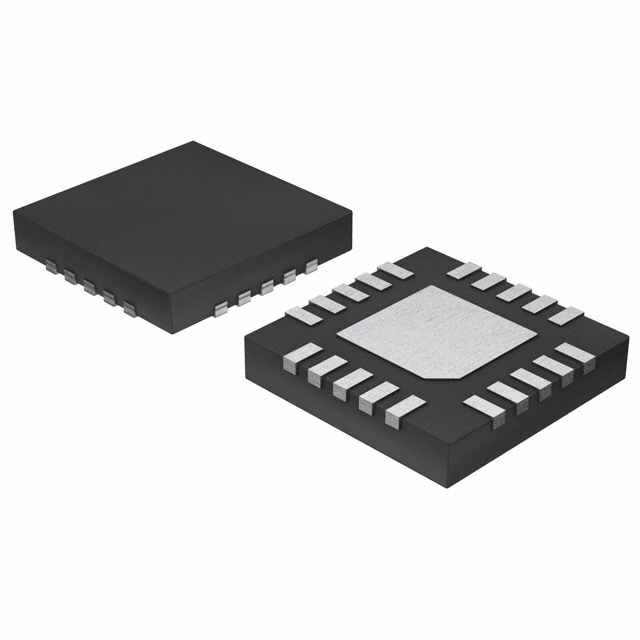

Package/Housing: 20-WFQFN Exposed Pad

Supplier Device Package: 20-WETQFN (3.5x3.5)

Applications

Rear View Camera

Surround View Camera
