The MAX77654DENV provides highly integrated battery charging and power solutions for low power applications where size and efficiency are critical. The device features a SIMO boost/buck regulator that provides three independently programmable power rails with a single inductor to minimise solution size. Two 100mA LDOs provide ripple rejection for audio and other noise-sensitive applications.The LDOs can also be configured as load switches to reduce power consumption by disconnecting external circuits when power is not required. The highly configurable linear charger supports a wide range of Li+ batteries and includes battery temperature monitoring to further enhance safety (JEITA).

Product Attributes

Current - Supply: 28µA

Voltage - Supply: 2.7V ~ 5.5V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

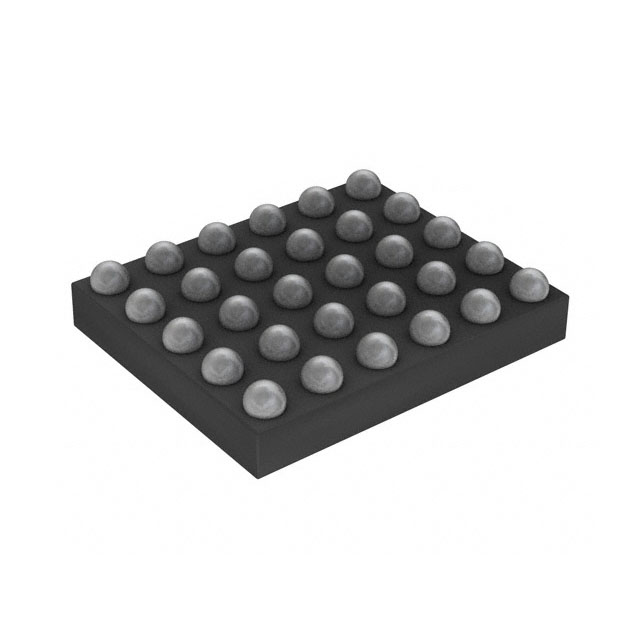

Package/Housing: 30-XFBGA, WLBGA

Supplier Device Package: 30-WLP (2.79x2.34)

Applications

● Bluetooth headsets, ear-worn devices

● Wireless speakers

● Fitness, health and activity monitors

● Wearable devices

● Security and confidentiality monitors

● Sensor nodes

● Portable consumer electronics devices

● Internet of Things (IoT)
