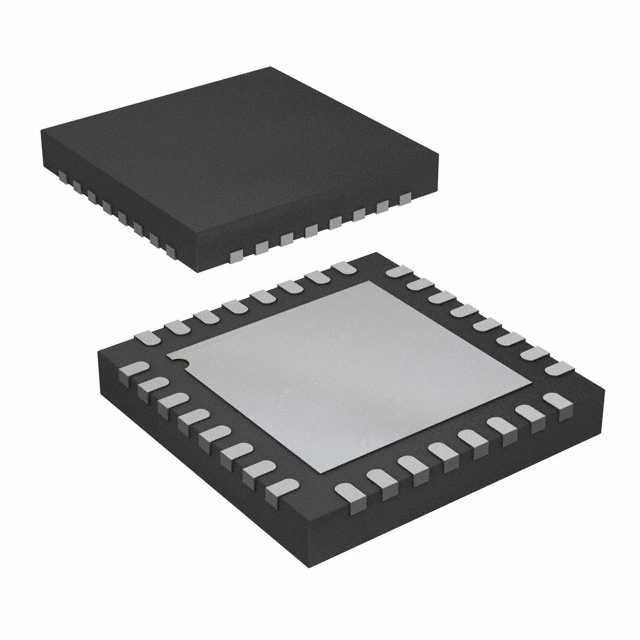

The ADFS7124-8BBCPZ is a low power, low noise, fully integrated analogue front-end for high precision measurement applications. The device consists of a low-noise, 24-bit Σ-Δ analogue-to-digital converter (ADC) that can be configured with 8 differential inputs or 15 single-ended or pseudo-differential inputs. An on-chip low-gain stage ensures that small-amplitude signals are directed to the ADC.

The device is powered from a single 2.7 V to 3.6 V analogue supply or a 1.8 V dual supply. The digital supply voltage range is 1.65 V to 3.6 V and the specified temperature range is -40°C to +125°C. The ADFS7124-8BBCPZ is available in a 32-lead LFCSP package.

Benefits and Features

TÜV Rheinland SC3 certification for functional safety

Three power modes

RMS noise

Low power: 24 nV rms at 1.17 SPS, gain = 128 (255 μA typical)

Medium Power: 20 nV rms at 2.34 SPS, gain = 128 (355 μA typical)

Full power: 23 nV rms at 9.4 SPS, gain = 128 (930 μA typical)

Up to 22 noise-free bits in all power modes (gain = 1)

Output Data Rate

Full power: 9.38 SPS to 19,200 SPS

Medium power: 2.34 SPS to 4800 SPS

Low power: 1.17 SPS to 2400 SPS

Rail-to-rail analogue inputs with gain greater than 1

Simultaneous 50 Hz/60 Hz rejection at 25 SPS (single cycle stabilisation)

Diagnostic capability (contributes to Safety Integrity Level (SIL) certification)

Crosspoint multiplexed analogue inputs

8 differential/15 pseudo-differential inputs

Programmable gain (1 to 128)

Bandgap reference with maximum drift of 15 ppm/°C (70 μA)

Matched programmable excitation current

Internal clock oscillator

On-chip bias voltage generator

Low-side power switch

General-purpose outputs

Multiple filter options

Internal temperature sensor

Self and system calibration

Sensor burnout detection

Automatic channel sequencer

Per-channel configuration

Power supply 2.7 V to 3.6 V and ±1.8 V

Separate interface power supply

Power-down current: 5 μA maximum

Temperature range: -40°C to +125°C -40°C to +125°C

32-lead LFCSP

3-wire or 4-wire serial interface

SPI, QSPI™, MICROWIRE™, and DSP compatible

Schmitt trigger on SCLK

Electrostatic discharge: 4 kV

Applications

Temperature measurement

Pressure measurement

Industrial process control

Instrumentation

Intelligent Transmitters
