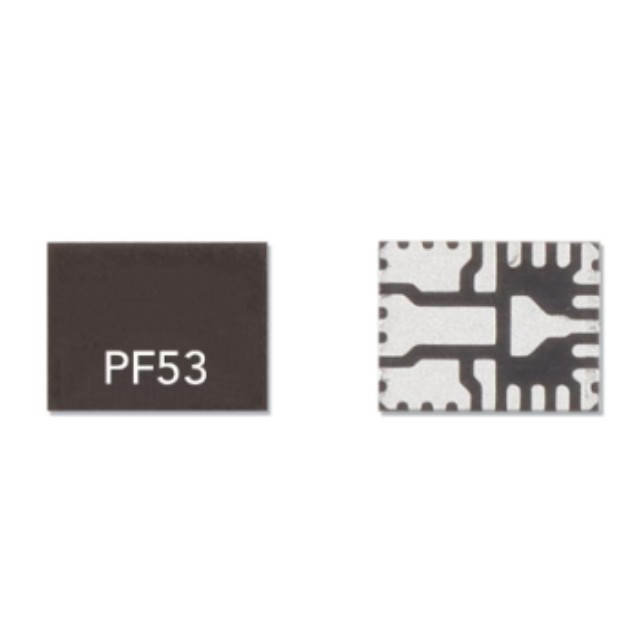

For picture reference, please see the specifications
< >

Commodity Model:MPF5302AMBA0ES

Trade Name:MPF5302AMBA0ES

Data Manual:MPF5302AMBA0ES.pdf

Brand:NXP

Particular Year:23+

Package:HWQFN-24

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MPF5302AMBA0ES
Package
HWQFN-24
Describe
15 A core supply regulators with AVP and watchdog

Product Description

The MPF5302AMBA0ES integrates a high performance 15A buck converter to power high-end processors. It comes with adaptive voltage positioning and a high bandwidth loop that provides excellent transient regulation and reduces capacitance requirements.


The MPF5302AMBA0ES has been developed to comply with the ISO 26262 automotive safety specification and can be configured for safety levels up to ASIL D and meets AEC-Q100 requirements. With an operating temperature range of -40°C to 125°C, the device is ideal for the automotive and industrial markets.


The MPF5302AMBA0ES device is suitable for a wide range of applications, either as a standalone power solution or in conjunction with other NXP PMICs, providing a complete system solution for today's advanced applications.


Product Attributes

Product Category: Professional Power Management (pmic)

Family: PF5300

Mounting Style: SMD/SMT

Package / Case: HWQFN-24

Output Current: 15 A

Input voltage range: 2.7 V to 5.5 V

Output voltage range: 500 mV to 1.2 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Applications: Low power, automotive, industrial

Input voltage (max): 5.5 V

Input voltage (min): 2.7 V

Maximum output voltage: 1.2 V

Operating supply voltage: 2.7 V to 5.5 V

Product: PMIC

Product Type: Power Management Specialised - PMICs

Factory Package Quantity: 490

Sub Category: PMIC - Power Management ICs


Applications

Automotive - Infotainment Systems, Gateways, Domain Controllers

High-end consumer and industrial
