Service Telephone:86-755-83294757
Trade Name:LM51501QRUMTQ1
Data Manual:LM51501QRUMTQ1.pdf
Brand:TI
Particular Year:23+

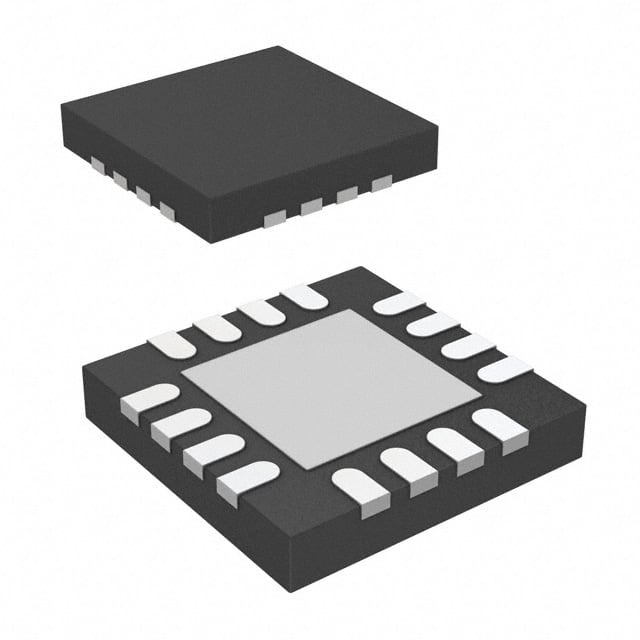

Package:WQFN-16
Delivery Date:New and Original
Stock: 1500pcs
The LM51501-Q1 is an automatic boost controller with a wide input voltage range. The device can be used to maintain a stable output voltage during vehicle start-up from the vehicle battery or from a backup battery.
Features
- Compliant with AEC-Q100 standard:
- Device temperature class 1: -40°C to +125°C ambient operating temperature range
- Device HBM ESD classification class 2
- Device CDM ESD classification class C4B
- Providing functional safety
- Documentation to assist in the design of functionally safe systems
- Wide input voltage range of 1.5V to 42V for output voltages ≥ 5V (65V absolute maximum)
- Low shutdown current (IQ ≤ 5µA)
- Low standby current (IQ ≤ 15µA)
- Four programmable output voltage options and two optional configurations
- 6.0V, 6.5V, 9.5V or 11.5V
- Start/stop or emergency call configuration
- Adjustable switching frequency range: 220 kHz to 2.3 MHz
- Automatic wake-up and standby mode changeover
- Optional clock synchronisation
- Boost status indicator
- 1.5A peak MOSFET gate driver
- Adjustable cycle-by-cycle current limit
- Thermal shutdown protection
- 16-pin WQFN with wettable and non-wettable side options
- Create custom designs with the LM51501-Q1 and with WEBENCH® Power Designer
Applications
- Automotive start/stop systems
- Automotive emergency call systems
- Battery-powered boost converters
