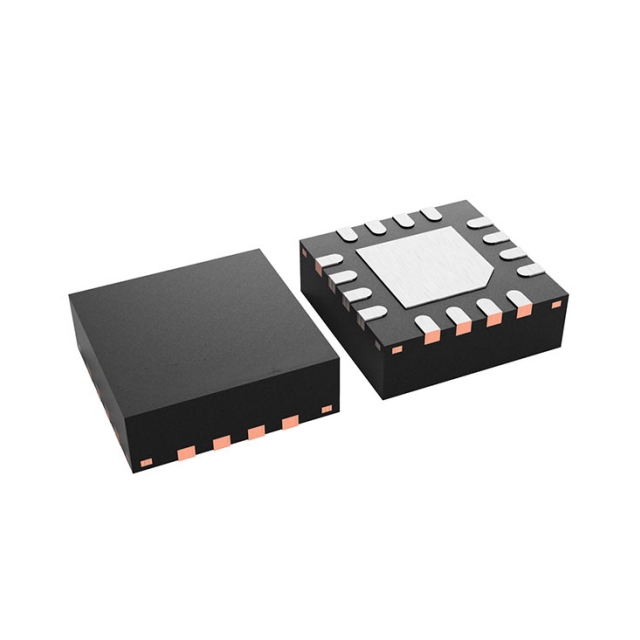

For picture reference, please see the specifications
< >

Commodity Model:DRV8411ARTER

Trade Name:DRV8411ARTER

Data Manual:DRV8411ARTER.pdf

Brand:TI

Particular Year:23+

Package:16-WFQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV8411ARTER
Package
16-WFQFN
Describe
Bipolar Motor Driver Power MOSFET PWM 16-WQFN (3x3)

Product Description

The DRV8411ARTER is a dual H-bridge motor driver that can drive one or two DC brushed motors, a stepper motor, solenoids, or other inductive loads. A triple charge pump allows the device to operate at voltages as low as 1.65V to accommodate 1.8V supply rails and low battery conditions. The charge pump integrates all capacitors and allows 100% duty cycle operation. Inputs and outputs can be connected in parallel to drive high current brushed DC motors with half R DS(ON).


Product Attributes

Motor Type - Stepper: Bipolar

Motor Type - AC, DC: Brushed DC

Features: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (4)

Interface: PWM

Technology: Power MOSFET

Application: General Purpose

Current - Output: 4A

Voltage - Supply: 1.5V ~ 11V

Voltage - Load: 1.5V ~ 11V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 16-WFQFN Exposed Pad

Supplier Device Package: 16-WQFN (3x3)


Applications

● Battery powered toys

● POS printers

● Video security cameras

● Office automation equipment

● Game consoles

● Robots

● Electronic smart locks

● General-purpose electromagnetic loads
