The ADP5600ACPZ is an interleaved charge pump inverter with an integrated negative voltage, low dropout (LDO) linear regulator. This interleaved charge pump inverter has lower output voltage ripple and reflected input current noise than conventional charge pump inverters. The interleaved charge pump inverter reduces output voltage ripple and reflected input current noise compared to inductive or conventional capacitive solutions. Integrated LDOs provide rail power supply rejection ratio (PSRR) with good voltage regulation performance at sufficient PSRR.

Product Attributes

Topology: Charge Pump (1), Linear (LDO) (1)

Number of Outputs: 2

Frequency - Switching: 100kHz ~ 1MHz

Voltage/Current - Output 1: Fixed, Adjustable

Voltage/Current - Output 2: Fixed, Adjustable, -505mV to -16.5V, 100mA

With LED Driver: None

With Monitor: None

With Sequencer: None

Voltage - Supply: 2.7V ~ 16V

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

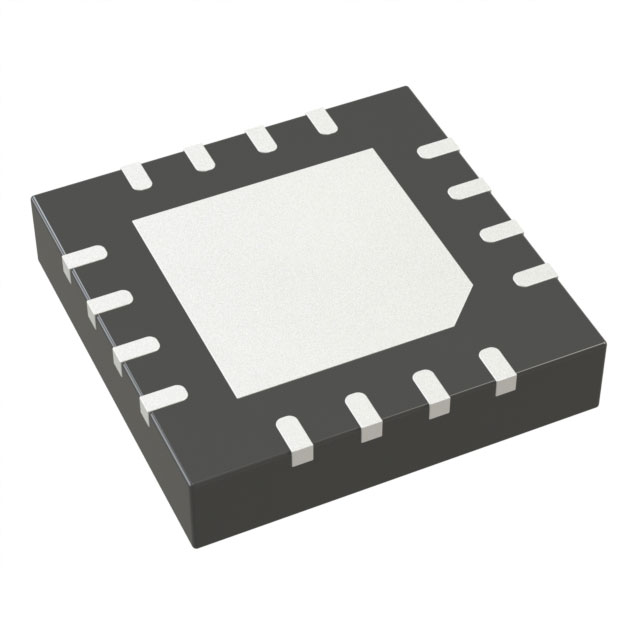

Package/Shell: 16-WQFN Exposed Pad, CSP

Supplier Device Package: 16-LFCSP-WQ (4x4)

Applications

● Powering the negative rail of a bipolar/split power supply

● ADC/DAC/AMP/mux applications
