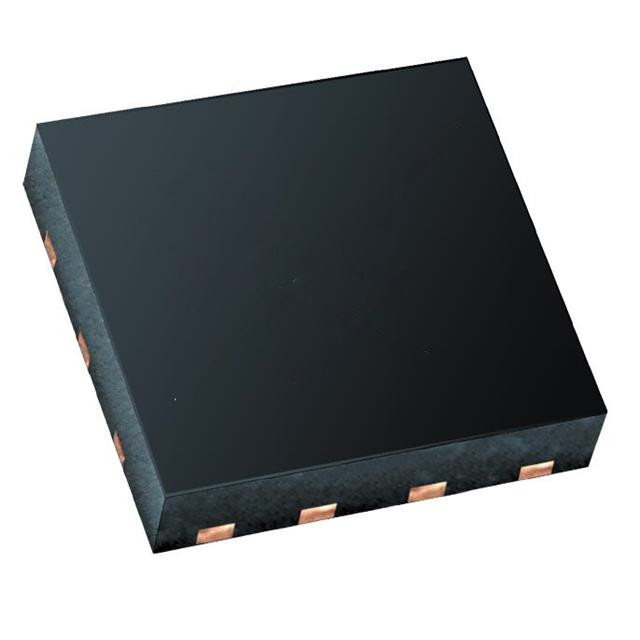

The SI8235AB-D-IM1 isolated driver integrates two separate isolated drivers in a single package. The driver has a peak output current of 4A and its maximum supply voltage is 24V. The SI8235 device uses Skyworks' proprietary silicon isolation technology to provide UL1577 voltage withstand up to 5 kVrms and fast propagation times of 45 ns. Ideal for MOSFET/IGBT gate drive isolation applications.

Specifications

Technology: capacitive coupling

Number of channels: 2

Voltage-isolation: 2500Vrms

Common mode transient immunity (min) : 45kV/µs

Propagation delay tpLH/tpHL (maximum) : 60ns, 60ns

Pulse width distortion (Max) : 5.6ns

Rise/fall time (typical value) : 12ns, 12ns

Current - Output high, low: 2A, 4A

Current - Peak output: 4A

Voltage - Forward (Vf) (typical value) : -

Voltage output power supply: 6.5V ~ 24V

Class: Automobile class

Qualification: AEC-Q100

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

Package/case: 14-VDFN

Supplier Package: 14-QFN (5x5)

Certification body: CQC, CSA, UR, VDE

Basic product number: SI8235
