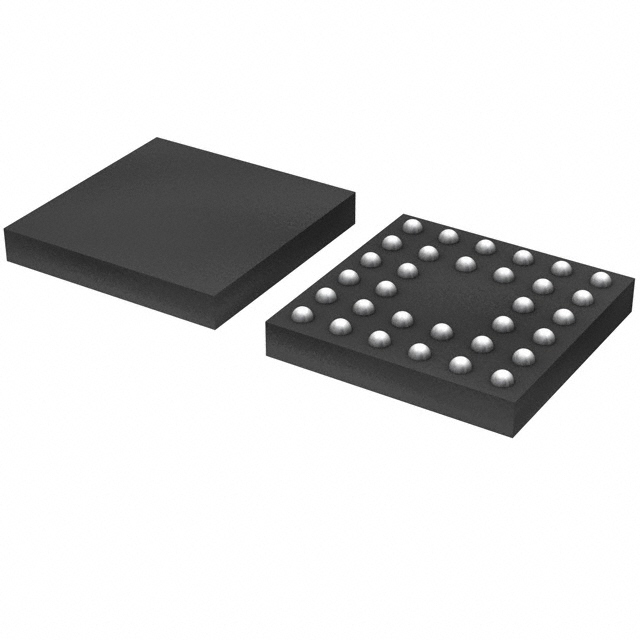

ADP5350ACBZ-1 a power management IC, combines one high performance buck regulator for single Li-Ion/Li-Ion polymer battery charging, a fuel gauge, a highly programmable boost regulator for LED backlight illumination, and three 150 mA LDO regulators.

Features

Switching mode USB battery charger

High accuracy and programmable charge terminal voltage and charge current

3 MHz buck for high efficiency and small footprint

Tolerant input voltage from -0.5 V to +20 V (USB Vveus)

Power path control allows system to operate with dead or missing battery

Compliant with JEITA charge temperature specification

Voltage-based state of charge (SOC) calculation algorithm

Extra low quiescent current in sleep mode

Battery impedance chemistry (Li-lon) compensation

Battery temperature compensation

No need for external sense resistor

Boost regulator with 5-channel LED driver

Support up to4 LED in series or in parallel

5 independent programmable LED current sinks

64 programmable LED current levels (up to 20 mA)

Programmable on and off timer for LED blinking

Adaptive headroom control to maximize the efficiency

Three 150 mA linear LDO regulators

Ultralow lq with zero load at 1 μA typical for LDO1

Optional load-switch full turn-on mode

Full IPC programmability with dedicated interrupt pin

Applications

Rechargeable Li-lon and Li-lon polymer battery-powered devices

Porta ble consumer devices

Portable medical devices

Portable instrumentation devices

Wearable devices
