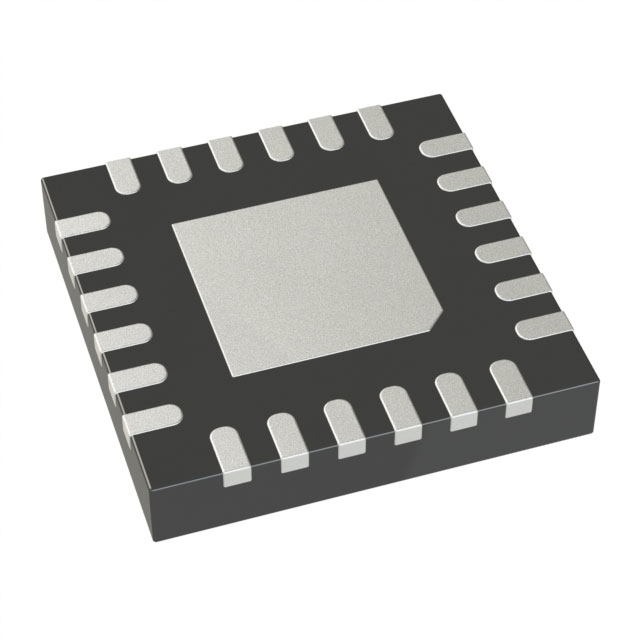

ADP5091ACPZ-2 is intelligent, integrated energy harvesting, ultralow power management unit (PMU) solutions that convert dc power from PV cells or TEGs.

Features

Boost regulator with maximum power point tracking (MPPT) with dynamic sensing or no sensing mode

Hysteresis mode for best ultralight load efficiency

Operating quiescent current ofSYS pin (Vw> Var≥Vwwor): 510 nA

Sleeping quiescent current of SYS pin (Vap <Vumnor): 390 nA

Input voltage operating range: 0.08Vto3.3 V

Fast cold start from 380 mV (typical) with charge pump

Programmable shutdown point on MINOP pin based on the input open circuit voltage (OCV)

150 mA regulated output from 1.5Vto 3.6V

Battery terminal charging threshold (2.2Vto 5.2V) to support charging storage elements

Optional BACK _UP power path management

Radio frequency (RF) transmission conducive to shutting down the switcher temporarily via microcontroller unit (MCU) communication

Applications

Photovoltaic (PV) cell energy harvesting

Thermoelectric generators (TEGs) energy harvesting

Industrial monitoring

Self powered wireless sensor devices

Portable and wearable devices with energy harvesting
