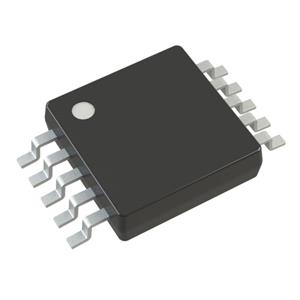

MCP33111-05-E/MS is single-ended 12-bit, single-channel 1 Msps and 500 kSPS ADC devices, featuring low power consumption and high performance, using a successive approximation register architecture.

Features

No Latency Output

Wide Operating Voltage Range

Analog Supply Voltage (AVoo): 1.8V

Digital Input/Output Interface Voltage (DV1o):1.7V .5.5V

External Reference (VREF): 2.5V - 5.1V

Pseudo-Differential Input Operation with Single- Ended Configuration

Input Full-Scale Range: 0V to +VREF

Ultra Low Current Consumption (typical)

During Input Acquisition (Standby): ~ 0.8 μA .

SPI-Compatible Serial Communication

SCLK Clock Rate: up to 100 MHz

ADC Self-Calibration for Offset, Gain, and Linearity Errors

During Power-Up (automatic)

On-Demand via user's command during normal operation

AEC-Q100 Qualified

Temperature Grade 1: -40*C to +125C

Applications

High-Precision Data Acquisition

Medical Instruments

Test Equipment

Electric Vehicle Battery Management Systems

Motor Control Applications

Switch-Mode Power Supply Applications

Battery-Powered Equipment
