The ADS114S06BIRHBR is a precision, 16-bit delta-sigma analogue-to-digital converter (ADC). Low power consumption and a variety of integrated functions reduce system cost and component count in applications that measure small-signal sensors. These ADCs feature digital filters that provide low-latency conversion results and 50Hz or 60Hz frequency rejection for noisy industrial environments. Low-noise programmable gain amplifiers (PGAs) provide a gain range of 1 to 128 to amplify low-level signals for use in resistive bridges or thermistors. In addition, these devices incorporate a low-drift 2.5 V reference voltage, reducing printed circuit board (PCB) area.

Product Attributes

Number of bits: 16

Sample rate (per second): 4k

Number of inputs: 4, 6

Input types: differential, pseudo-differential, single-ended

Data interface: SPI

Configuration: MUX-PGA-ADC

Number of A/D converters: 1

Architecture: Triangular Integral

Reference Type: External, Internal

Voltage - Powered, Analogue: ±2.5V, 2.7V ~ 5.25V

Voltage - Supply, Digital: 2.7V ~ 3.6V

Features: PGA, Temperature Sensor

Operating Temperature: -40°C ~ 125°C (TA)

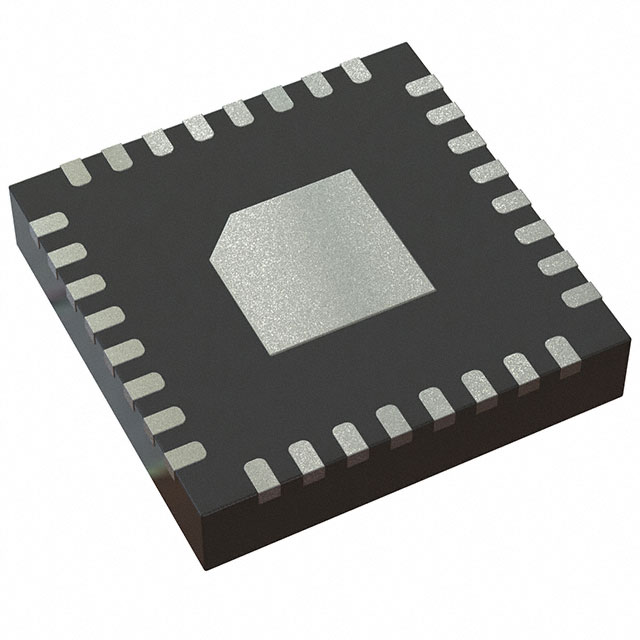

Package/Housing: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (5x5)

Mounting Type: Surface Mount

Applications

● Field transmitters: temperature, pressure, strain, flow

● PLC and DCS analogue input modules

● Temperature controllers

● Climate chambers, industrial ovens
