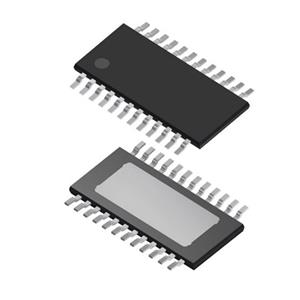

The BTS722204ESP is an SPI power controller with protection and diagnostic features. The device integrates SMART7 technology.

Product Attributes

Switch Type: Relay, Solenoid Driver

Number of Outputs: 4

Ratio - Input:Output: 1:4

Output Configuration: High Side

Output Type: N-Channel

Interface: PWM, SPI

Voltage - Load: 6V ~ 28V

Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V

Current - Output (Max): 4A, 4A, 7A, 7A

On Resistance (Typ): 5.5 mOhm, 13.5 mOhm

Input Type: Non-Inverting

Characteristics: Load Release, PWM Input, Slew Rate Controlled, Status Flags

Fault Protection: Current Limit (Fixed), Overload, Over Temperature, Over Voltage, Battery Reverse, Short Circuit, UVLO

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-TSDSO-24-32

Package/Shell: 24-TSSOP (0.154", 3.90mm Width) Exposed Pad

Potential Applications

Suitable for resistive, inductive, and capacitive loads

Replacement for electromechanical relays, fuses, and discrete circuits

Drive capability for 7 A and 4 A loads as well as high inrush current loads such as 65W bulb, HID or LED equivalents and 42W bulb or LED equivalents
