The LP591250MDRVREP is a low noise, low dropout voltage regulator (LDO) that delivers up to 500 mA of output current. Designed to meet the requirements of RF and analogue circuits, it has high PSRR, low quiescent current, and low line and load transient response. Delivers best-in-class noise performance without the need for noise bypass capacitors. Provides class-leading noise performance without capacitance.

Product Attributes

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1

Voltage - Input (Max): 6.5V

Voltage - Output (Min/Fixed): 5V

Voltage Drop (Max): 0.18V @ 500mA

Current - Output: 500mA

Current - Static (Iq): 55 µA

Current - Supply (Max): 600 µA

PSRR: 80dB ~ 40dB (100Hz ~ 100kHz)

Control Features: Current Limit, Enable, Power Good, Soft Start

Protection Features: Over Current, Over Temperature, Reverse Current, Short Circuit, Under Voltage Lockout (UVLO)

Operating Temperature: -55°C ~ 125°C (TJ)

Mounting Type: Surface Mount

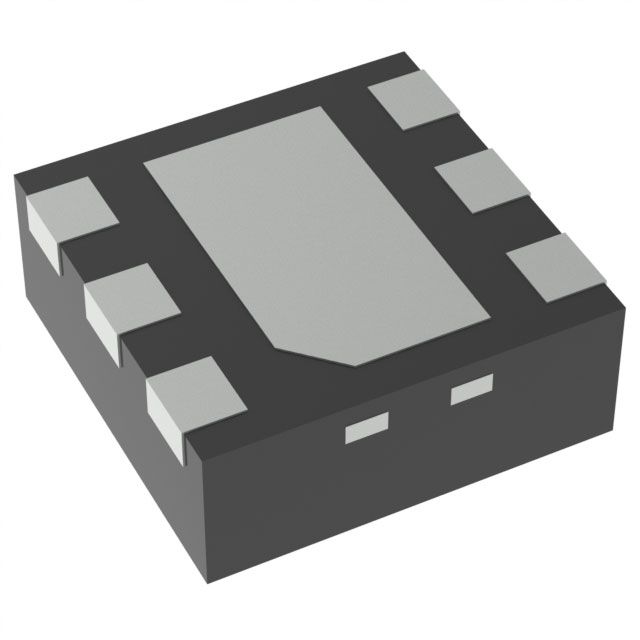

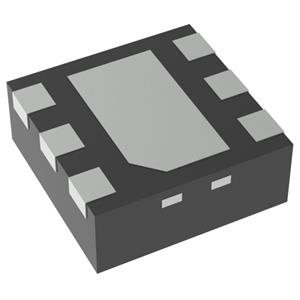

Package/Shell: 6-WDFN Exposed Pad

Supplier Device Package: 6-WSON (2x2)

Applications

● Surveillance systems

● Inertial navigation

● Land mobile radio

● GPS receivers

● Data concentrators
