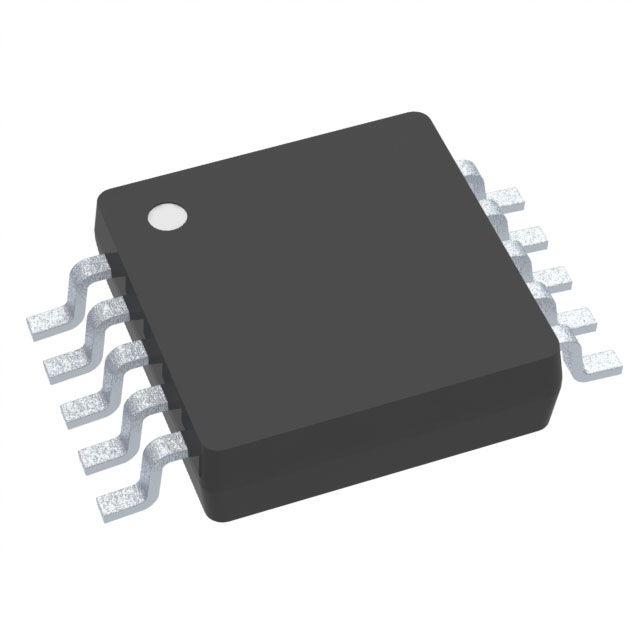

INA238AIDGSR is an ultra-precise digital power monitor with a 16-bit delta-sigma ADC specifically designed for current-sensing applications. The device can measure a full-scale differential input of ±163.84 mV or ±40.96 mV across a resistive shunt sense element with common-mode voltage support from –0.3 V to +85 V.

Product Features

High-resolution, 16-bit delta-sigma ADC

Current monitoring accuracy:

– Offset voltage: ±5 µV (maximum)

– Offset drift: ±0.02 µV/°C (maximum)

– Gain error: ±0.1% (maximum)

– Gain error drift: ±25 ppm/°C (maximum)

– Common mode rejection: 140 dB (minimum)

Power monitoring accuracy: 0.7% full scale, –40°C to +125°C (maximum)

Fast alert response: 75 μs

Wide common-mode range: –0.3 V to +85 V

Bus voltage sense input: 0 V to 85 V

Shunt full-scale differential range: ±163.84 mV / ±40.96 mV

Input bias current: 2.5 nA (maximum)

Temperature sensor: ±1°C (maximum at 25°C)

Programmable conversion time and averaging

2.94-MHz high-speed I2C interface with 16 pinselectable addresses

Operates from a 2.7-V to 5.5-V supply:

– Operational current: 640 µA (typical)

– Shutdown current: 5 µA (maximum)

Applications

DC/DC converters and power inverters

Industrial battery packs

Power-over-ethernet (PoE)

Telecom equipment

Enterprise servers
