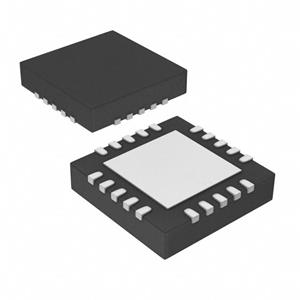

The UCS2113T-1C-V/G4 is a dual USB port power switch configuration that delivers 3.0A continuous current (3.4A maximum) to each VBUS port with accurate overcurrent limiting (OCL), port power switch enable, automatic recovery fault handling, undervoltage and overvoltage lockout, reverse drive protection and backpressure protection, and thermal protection.

The UCS2113T-1C-V/G4 is ideal for standalone applications and applications with SMBus/I2C communications.

Features

Dual-port power switch:

Supply voltage range: 2.9V to 5.5V

3A continuous current per VBUS port, 40mΩ on-resistance per switch

Independent port power switch enable pins

DUAL fault ALERT# active drain output pin

Trip mode current limit behaviour

Undervoltage and overvoltage blocking

Reverse drive, reverse voltage protection

Auto recovery fault handling, low test current

BOOST# logic output to add DC-DC converter output under high load conditions

SMBus 2.0/I2C mode features:

Three programmable current limits that can be assigned to each power switch

Additional SMBus addresses available on request

Block read and block write

Independent current monitoring (no external sense resistor required)

Fully programmable per-port charge combining rationing and behaviour

Automatic VBUS discharge function

Wide operating temperature range: -40°C to +105°C

Passed automotive AEC-Q100 reliability test
