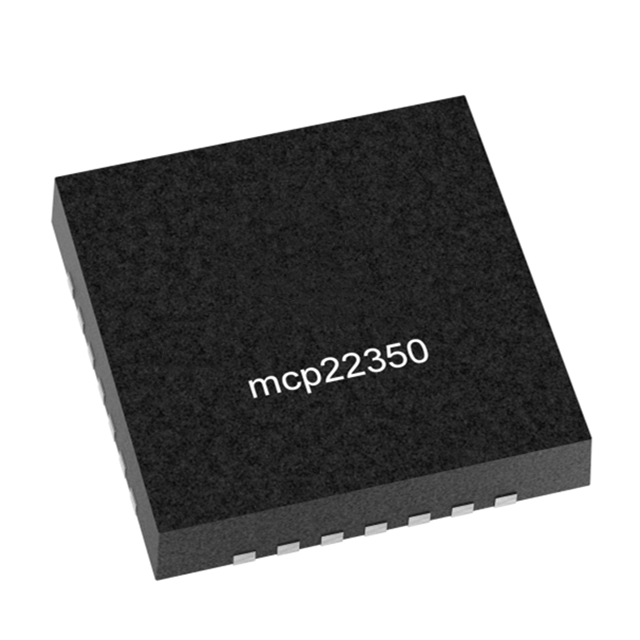

The MCP22350T-1I/Q8X USB Type-C™ power supply (PD) 3.1 port controller is designed as a supporting PD controller for external Microchip MCUS/SoCs. This controller complies with the USB Type-C™ cable and connector specification as well as the USB PD 3.1 specification. It has the following key features:

PD controllers for microchip MCUS or SoCs

A MAC that complies with the USB Power 3.1 specification

The SPI interface for CPU/SoC communication

Supports USB Type-C standby mode

Dual-role port (DRP) and Fast Role Switching (FRS) support

Supports DRP offloading mode

Integrated analog discrete components

VCONN FET, supporting Rp/Rd switching

The battery power is exhausted and the Rd terminal is connected

Programmable current detection function for overcurrent conditions

Voltage detection function for overvoltage situations

Integrated 3.3V power switch

Support for depleted batteries (MCP22350-2 only)

Automatically switch between VBUS and 3.3V main power supply

Power supply and input/output:

Integrated 1.8V voltage regulator

Eight configurable universal I/O pins

Available in 4mm x 4mm 28-QFN package

The MCP22350T-1I/Q8X highly integrated small-sized PD port controller can provide cable plug orientation and detection for USB Type-C sockets. These controllers achieve baseband communication with the USB Type-C devices of partners through the integration of USB PD 3.1 MAC. The MCP22350T-1I/Q8X controller includes eight configurable general-purpose I/O pins, and the standby mode can be negotiated using the PD 3.1 protocol via the USB Type-C connector. These controllers can be selected between two external 3.3V power supplies (VBUS and main power supply) by using an integrated power switch to support the situation of battery depletion.

Typical applications

Consumer electronics

Palmtop computer

Desktop computer

Smart phone

Tablet computer

Display

Docking station

HDTV

Printer

Multi-port charger
