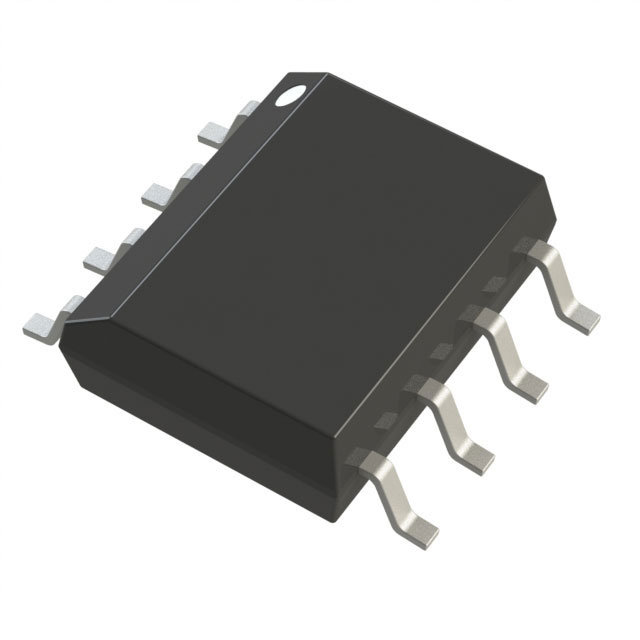

The ADUM3220ARZ are 4 A isolated dual-channel gate drivers using ADI's iCoupler® technology. These isolated devices combine high-speed CMOS with single-chip transformer technology, providing excellent performance characteristics over alternative devices such as pulse transformer and gate driver combinations.

The ADUM3220ARZ is rated over a -40°C to +125°C junction temperature range.

Features

Peak output current: 4 A

Precision timing characteristics

Isolator and driver propagation delay: 60 ns (maximum)

Interchannel matching: 5 ns (max)

Operating junction temperature up to: 125°C

3.3 V to 5 V input logic

7.6 V to 18 V output driver

Undervoltage lockout (UVLO): 7.0 V VDD2

Thermal shutdown protection above 150°C

Default low level output

High operating frequency: DC to 1 MHz

CMOS input logic levels

High common-mode transient immunity: 25 kV/μs

Automotive version is AEC-Q100 certified

Applications

Isolated synchronous DC/DC converters

MOSFET/IGBT gate drivers
