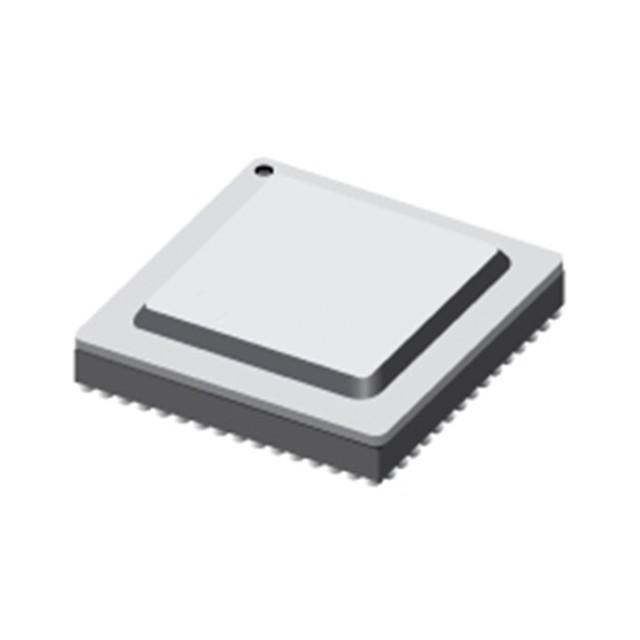

The DAC12DL3200ACF is a very low-latency dual-channel RF sampled digital-to-analog converter (DAC) with input and output rates up to 3.2GSPS in dual-channel mode or 6.4GSPS in single-channel mode. When using multiple Nyquist output modes, Dacs can transmit signal bandwidths of more than 2GHz at carrier frequencies approaching 8GHz. The high output frequency range supports direct sampling in the C band (8GHz) and beyond.

specification

Product category: DAC - DAC

Series: DAC12DL3200

Resolution: 12 bit

Sampling ratio: 3.2 GS/s, 6.4 GS/s

Number of channels: 1 Channel, 2 Channel

Output type: Current

Interface type: LVDS

Analog power supply voltage: -1.8V, 1V, 1.8V

Digital supply voltage: 1.8V

Operating temperature: -40°C ~ 85°C

Installation style: SMD/SMT

Package/box: FCBGA-256

DNL - differential nonlinearity: 0.6 LSB

INL - Integral nonlinearity: 0.9 LSB

Humidity sensitivity: Yes

Pd- Power dissipation: 2.27W

Power consumption: 1.49W

Product type: DAC- digital to analog converter

Reference type: External, internal

SFDR - Spury-free dynamic range: 52 dBc, 54 dBc, 55 dBc, 59 dBc, 63 dBc, 66 dBc, 67 dBc
