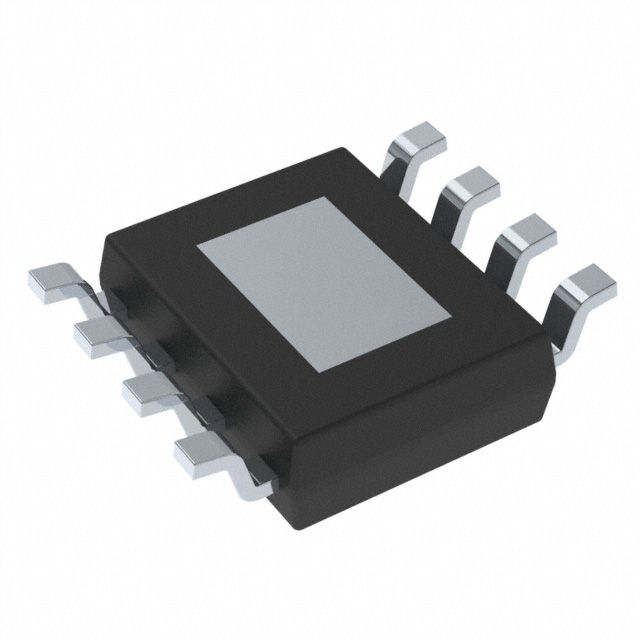

Automobile Chips TPS54360BQDDARQ1 Split Rail Switching Regulator IC PowerSOIC8

Product Description Of TPS54360BQDDARQ1

TPS54360BQDDARQ1 Undervoltage lockout is internally set at 4.3 V but can be increased using an external resistor divider at the enable pin. The output voltage start-up ramp is internally controlled to provide a controlled start up and eliminate overshoot.

Specification Of TPS54360BQDDARQ1

Operating Quiescent Current: 146uA

Shutdown Current: 2 UA

Adjustable Switching Frequency: 100kHz To 2.5MHz

Operating Temperature: -40°C ~ 150°C (TJ)

Topology: Buck, Split Rail

Features Of TPS54360BQDDARQ1

Survives load dump pulses up to 65V

A low-ripple pulse-skip mode reduces the no-load supply current to 146 μA

Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range

60V, 3.5A step-down regulator with an integrated high-side MOSFET

A wide adjustable frequency range allows either efficiency or external component size to be optimized.

Frequency foldback and thermal shutdown protects internal and external components during an overload condition.

Available in an 8-pin thermally enhanced HSOP PowerPAD package.

Applications Of TPS54360BQDDARQ1

Communications Power Systems
