The DAC63004RTER is a pin-compatible family of ultra-low power, quad, buffered, voltage-output and current-output intelligent digital-to-analog converters (DACs). These DACx3004s support high-resistance power-down modes and high-resistance outputs in the event of a power-down condition, and the DAC outputs provide a forced-detect option that can be used as programmable comparators and current traps. Versatile GPIOs, function generation, and NVM make these smart DACs suitable for processorless applications and design reuse. The devices auto-detect I2C, PMBus, and SPI interfaces and include an internal reference.

Product Attributes

Number of bits: 12

Number of DACs: 4

Build Time: 25µs (standard)

Output Type: Voltage or Current - Buffered

Differential outputs: None

Data Interface: I²C, SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 1.71V ~ 5.5V

Voltage - Powered, Digital: 1.62V ~ 5.5V

INL/DNL (LSB): ±4LSB, ±1

Architecture: Resistor String DAC

Operating Temperature: -40°C ~ 125°C

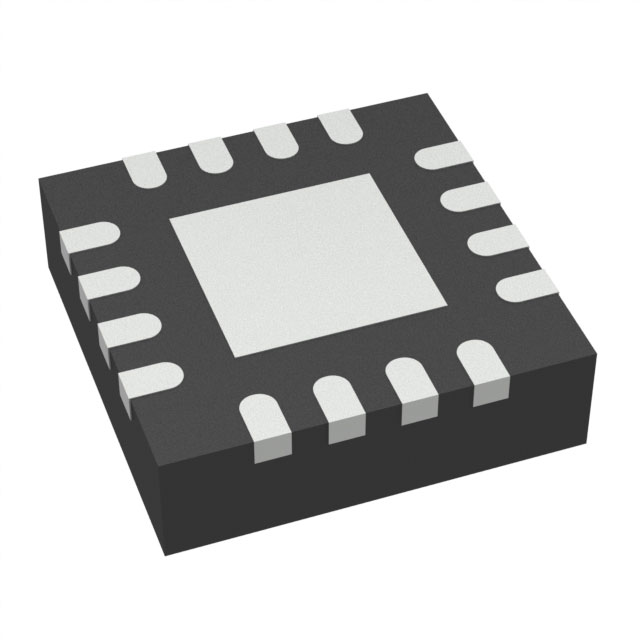

Package/Housing: 16-WFQFN Exposed Pad

Supplier Device Package: 16-WQFN (3x3)

Mounting Type: Surface Mount

Applications

● Land Mobile Radio

● Pulse Oximeter

● Optical modules

● Standard laptop computers
