The DAC70501MDQFR digital-to-analogue converters (DACs) are 14-bit, high-precision, low-power, voltage-output devices.The DACx0501 are monotonic by design and provide linearity below 1LSB. The devices include a 2.5V, 5ppm/˚C internal reference that provides a full-scale output voltage range of 1.25V, 2.5V, or 5V. A power-on reset circuit is employed to ensure that the DAC output powers up at zero or mid-level and remains at that level until a valid code is written to the device. These devices consume a low 1mA of current and have a power-down feature that reduces current consumption to 15µA (typical) at 5V.

Product Attributes

Number of bits: 14

Number of analogue-to-digital converters: 1

Build-up time: 5µs (standard)

Output Type: Voltage - Buffered

Differential outputs: None

Data Interface: I²C, SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 2.7V ~ 5.5V

INL/DNL (LSB): ±1 (max), ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

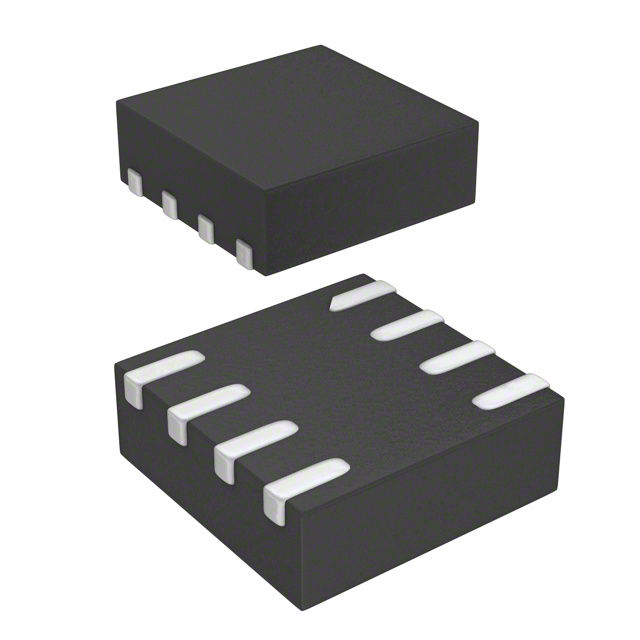

Package/Housing: 8-WFDFN

Supplier Device Package: 8-WSON (2x2)

Mounting Type: Surface Mount

Applications

● Oscilloscopes and digitisers

● Parametric Measurement Unit (PMU)

● Data acquisition (DAQ)

● Flat panel displays (FPDs) Short-circuit strip mode

● Generators

● Small base stations

● Analogue output modules

● Process analysis (pH, gas, concentration, force and humidity)

● Programmable DC power supplies
