DAC70501ZDQFR is 14-bit digital-to-analog converters (DACs), highly accurate, low-power devices with voltage-output. It include a 2.5V, 5ppm/°C internal reference, giving full-scale output voltage ranges of 1.25 V, 2.5 V, or 5 V.

Product Features

16-bit performance: 1-LSB INL and DNL (max)

Low glitch energy: 4 nV–s

Wide power supply: 2.7 V to 5.5 V

Buffered output range: 5 V, 2.5 V, or 1.25 V

Very-low power: 1 mA at 5.5 V

Integrated 5-ppm/°C (max), 2.5-V precision reference

Pin-selectable serial interface:

– 3-wire, SPI compatible up to 50-MHz

– 2-wire, I2C compatible

Power-on-reset: Zero scale or midscale

1.62-V VIH with VDD = 5.5 V

Temperature range: –40°C to +125°C

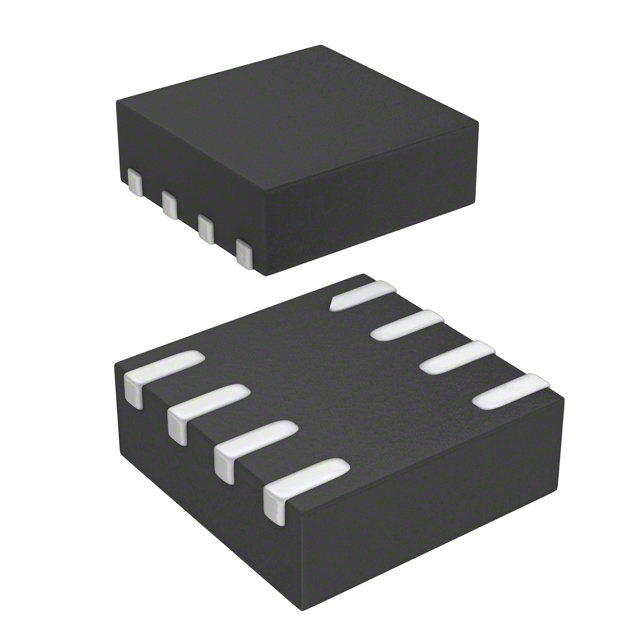

Packages: Small 8-pin WSON and 10-pin VSSOP

Applications

Oscilloscopes and digitizers

Parametric measurement unit (PMU)

Data acquisition (DAQ)

Flat panel display (FPD) shorting bar pattern generator

Small cell base station

Analog output module

Process analytics (pH, gas, concentration, force and humidity)

Programmable dc power supply
