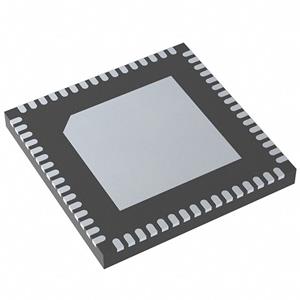

The DS90UH947NTRGCRQ1 is an OpenLDI to FPD-Link III bridge device that works in conjunction with the FPD-Link III DS90UB940-Q1/DS90UB948-Q1 deserialiser to provide single- or dual-channel high-speed serial streaming over cost-effective 50Ω single-ended coaxial cable or 100Ω differential shielded twisted pair (STP) cable. or dual-channel high-speed serial streams over cost-effective 50Ω single-ended coaxial or 100Ω differential shielded twisted pair (STP) cable. It serialises OpenLDI inputs and supports video resolutions up to WUXGA and 1080p60 (24-bit colour depth).

Features

Compliant with AEC-Q100 for automotive applications

Device temperature class 2: -40°C to +105°C, TA

Supports clock frequencies up to 170 MHz for WUXGA (1920x1200) and 1080p60 resolution and 24-bit colour depth

Single and dual FPD-Link III outputs

Single link: up to 96 MHz pixel clock

Dual Link: up to 170MHz pixel clock

Single and dual OpenLDI (LVDS) receivers

Configurable 18-bit RGB or 24-bit RGB

High-speed inverse channel with up to 2Mbps GPIO support

Automatic temperature and aging compensation with support for cables up to 15 metres long

I2C (master/slave) with 1Mbps fast mode enhancement

SPI passthrough interface

Backward compatible with DS90UB926Q-Q1 and DS90UB928Q-Q1 FPD-Link III deserialisers

Applications

• Automotive infotainment:

- In-vehicle infotainment (IVI) hosts and human-machine interface (HMI) modules

- Rear seat entertainment systems

- Digital instrument clusters

• Security and surveillance cameras
