The TMP451-Q1 device is a high precision, low power remote temperature sensor monitor with a built-in local temperature sensor. Such remote temperature sensors typically use low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes, and for local and remote sensors, this temperature representation is encoded in a 12-bit digital format with a resolution of 0.0625°C. For local and remote temperature sensors, the temperature accuracy is ±1°C (maximum) over a typical operating range. This two-wire serial port accepts SMBus communication protocol.

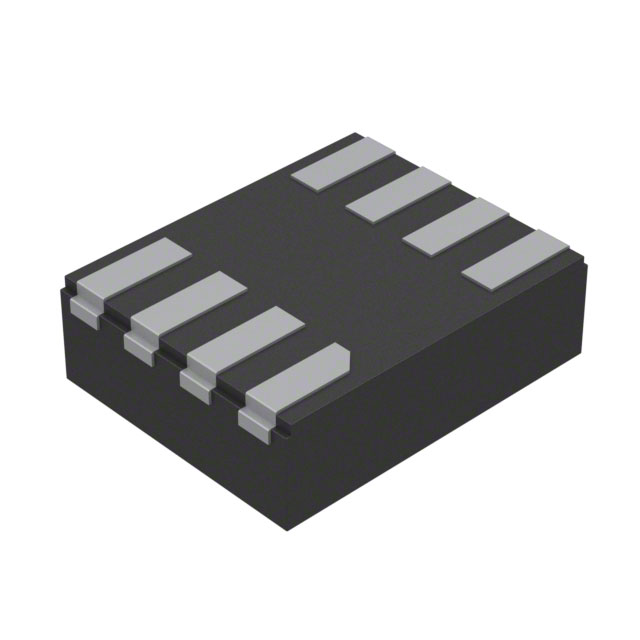

The TMP451-Q1 device is ideal for multi-location, high-precision temperature measurements in a variety of automotive subsystems. The TMP451-Q1 comes in a wettable wing WSON package that provides a visual indicator for weldability to reduce automatic visual inspection (AVI) time. The device has a rated operating supply voltage range of 1.7V to 3.6V and a rated operating temperature range of -40°C to 125°C.

Device: TMP451HQDQWRQ1

Product category: Temperature sensor

Sensor type: Digital, local/remote

Sensing temperature - Local: -40°C ~ 125°C

Sensing temperature - Remote: -64°C ~ 191°C

Output type: SMBus

Voltage - Power supply: 1.7V ~ 3.6V

Resolution: 12 b

Features: Single trigger, output switch, programmable limit, off mode

Accuracy - Max (Min) : ±1°C (±2°C)

Test conditions: 0°C ~ 70°C (-40°C ~ 125°C)

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount, wets flanks

Package/housing: 8-WFDFN

Supplier Package: 8-WSON (2x2.5)

Basic product number: TMP451

Applications:

• Automotive infotainment systems

Electronic control unit (ECU) processor temperature monitoring

• Electronic Control Unit (TCM) processor temperature monitoring

Electronic control unit (BCM) processor temperature monitoring

• LED headlight temperature control
