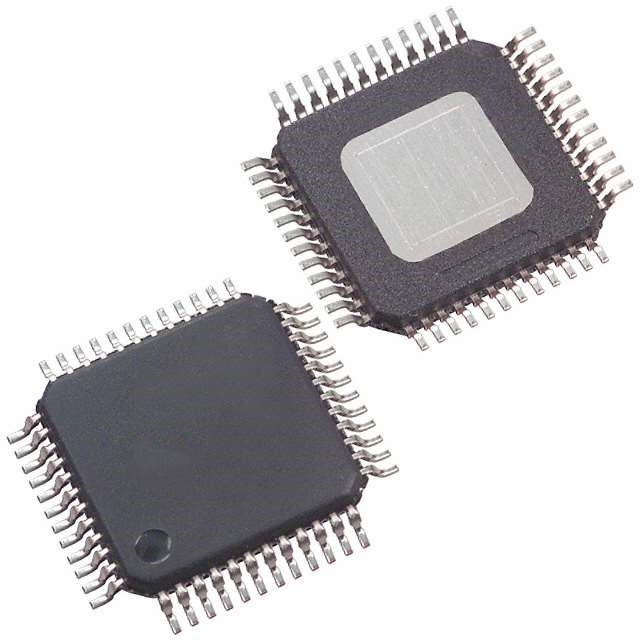

The LM5170QPHPRQ1 controller provides the high voltage and precision components necessary for a two-channel bi-directional converter for automotive 48V and 12V dual battery systems. The device regulates the average current between the high and low voltage ports in the direction specified by the DIR input signal. The current regulation level can be programmed through the analogue or digital PWM input.

Features

- Complies with AEC-Q100 for automotive applications:

- Device Temperature Class 1: -40°C to +125°C ambient operating temperature range

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Providing Functional Safety

- Documentation to aid in the design of functionally safe systems

- Maximum voltage ratings of 100V and 65V for high-voltage (HV) and low-voltage (LV) ports, respectively

- 1% precision bi-directional current regulation

- 1% precision channel current monitoring

- 5A peak half-bridge gate driver

- Programmable or adaptive dead-time control

- Selectable programmable oscillator frequency synchronised to external clock

- Independent channel enable control inputs

- Analogue and digital channel current control inputs

- Programmable cycle-by-cycle peak current limit

- HV and LV port overvoltage protection

- Diode emulation to prevent negative currents

- Programmable soft-start timer

- MOSFET fault detection and circuit breaker control at startup

- Multi-phase operation for phase up/down

Applications

- Dual-battery automotive systems

- Supercapacitor or battery backup power converters

- Stackable buck or boost converters
