The LM5146QRGYRQ1 100V Synchronous Buck Controller is designed to minimise the need for external surge suppression components by regulating high input voltage sources or input supply rails that are subject to high voltage transients. the ultra-short on-time of the high-side switch of 40ns facilitates a large step-down ratio and supports direct step-down conversions from the 48V nominal input to the low voltage rail, reducing system complexity and solution cost. This reduces system complexity and solution cost. The LM5146-Q1 is ideal for high-performance 48V battery automotive applications, ADAS (Around View ECU), and HEV/EV systems because it can continue to operate at nearly 100% duty cycle as needed even when the input voltage dips as low as 5.5V.

Product Specifications

Product Category: Switching Regulators

Mounting Style: SMD/SMT

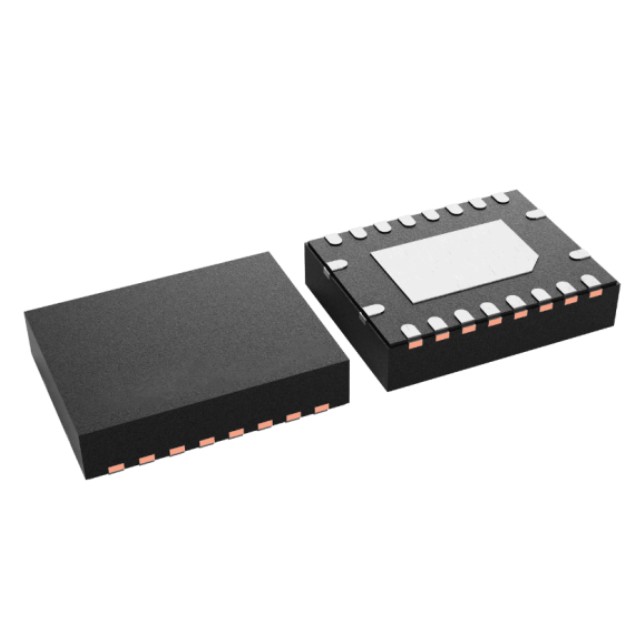

Package / Case: VQFN-20

Topology: Buck

Output Voltage: 800 mV to 60 V

Output current: 3.5 A

Number of outputs: 1 Output

Input voltage (min): 5.5 V

Input voltage (max): 100 V

Switching frequency: 100 kHz to 1 MHz

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Qualification: AEC-Q100

Series: LM5146

Input Voltage: 5.5 V to 100 V

Humidity sensitivity: Yes

Supply voltage - min: 5.5 V

APPLICATIONS

- High power automotive DC/DC regulators

- Automotive motor drives, ADAS

- HEV/EV powertrain systems

- Body electronics and lighting

- Infotainment systems and instrument clusters
