TPS43350QDAPRQ1 This device is a current-mode synchronous buck controller for automotive applications in harsh environments. This device is ideal for multi-rail systems that require low quiescent current because they operate in a low power mode (only 30µA current consumption) at light loads. The device provides protection features such as thermal protection, soft start, and overcurrent protection. In the event of a short circuit at the regulator output, the current foldback feature is activated, which limits the current flow through the metal-oxide-semiconductor field-effect transistors (MOSFETs) used to control power dissipation. Two independent soft-start inputs enable independent output voltage ramping during start-up.

The switching frequency is programmable from 150kHz to 600kHz, i.e. the frequency of the external clock to which the device can be synchronised.

Features

Meets the requirements of automotive applications

AEC-Q100 test guide with the following results:

Device Temperature Level 1: -40°C to 125°C ambient operating temperature range

Device Human Body Model (HBM) Electrostatic Discharge (ESD) Classification Level H2

Device HBM Charging Device Model (CDM) Classification Level C2

Two synchronous buck controllers

Input voltage range up to 40V (transients up to 60V)

Low power mode IQ: 30µA (one buck regulator on), 35µA (two buck regulators on)

Low shutdown current Ish<4µA

Buck output range 0.9V to 11V

Programmable frequency and external synchronisation range of 150kHz to 600kHz

Independent Enable Inputs (ENA, ENB)

Frequency spread spectrum (TPS43351-Q1)

Selectable forced continuous mode or auto low power mode for light loads

Sense resistor or inductor DCR sensing

In-phase switching between buck channels

Peak gate drive current 1.5A

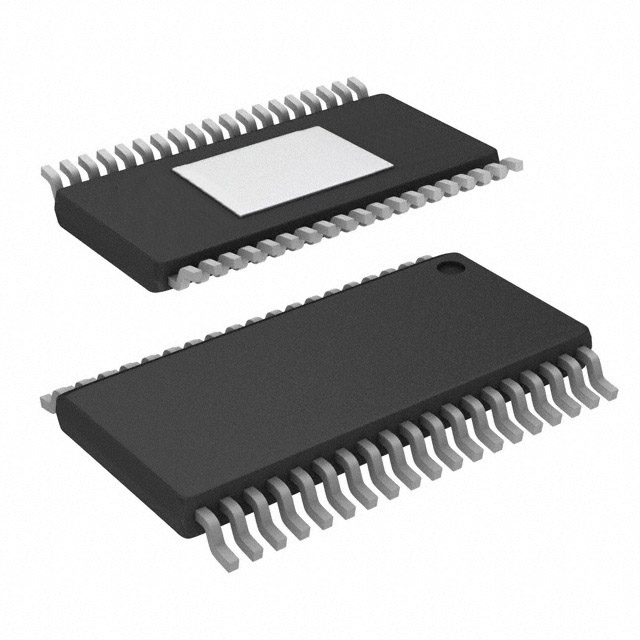

Thermally enhanced, 38-pin heat sink thin small form factor package (DAP) PowerPAD package

Application Areas

In-vehicle infotainment, navigation, and instrument panel systems

Industrial or automotive multi-rail DC power distribution systems and electronic control units
