The LM51561QDSSRQ1 device is a non-synchronous boost controller with wide input range using peak current mode control. The devices can be used in boost, SEPIC, and flyback topologies.

Product Attributes

Output Type: Transistor Driver

Function : Boost, Boost/Buck

Output Configuration: Positive

Topology: Boost, Flyback, SEPIC

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 3.5V ~ 60V

Frequency - Switching: 100kHz ~ 2.2MHz

Duty Cycle (Maximum): 93%

Synchronous Rectifier: No

Clock Synchronisation: Yes

Serial Interface: -

Control Features: Current Limit, Enable, Frequency Control, Power Good, Soft Start

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

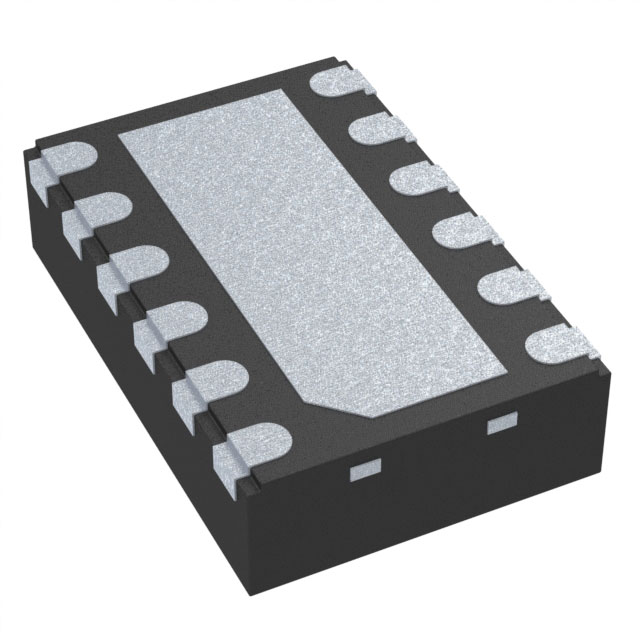

Package/Shell: 12-WFDFN Exposed Pad

Supplier Device Package: 12-WSON (3x2)

Base Product Number: LM51561

APPLICATIONS

Automotive 12V or 24V Battery Applications

Automotive start/stop applications

High voltage LiDAR power supplies

Multi-output flyback applications without optocoupler

Automotive Tail Light LED Bias Power Supplies

Wide Input Boost, SEPIC and Flyback Power Modules

Battery Powered Boost, SEPIC and Flyback Applications
