Service Telephone:86-755-83294757
Trade Name:LM5141QRGERQ1
Data Manual:LM5141QRGERQ1.pdf
Brand:TI
Particular Year:23+

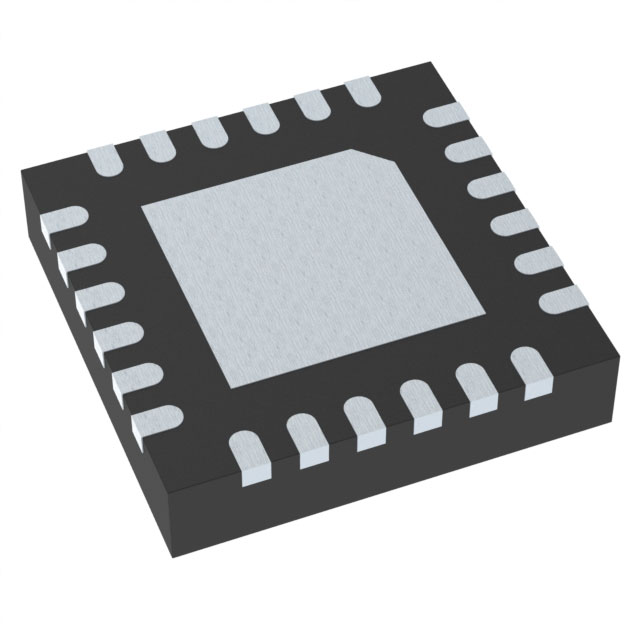

Package:24-VQFN
Delivery Date:New and Original
Stock: 1000pcs
LM5141QRGERQ1 is a synchronous buck controller, intended for high voltage wide VIN step-down converter applications.
Product Features
VIN: 3.8 V to 65 V (70 V Absolute Maximum)
Output: Fixed 3.3 V, 5 V, or Adjustable From 1.5 V to 15 V with ±0.8% Accuracy
Fixed 2.2-MHz or 440-kHz Switching Frequency with ±5% Accuracy
High-Side and Low-Side Gate Drive With SlewRate Control
Optional Frequency Shift by Varying an Analog Voltage or RT Resistor
Optional Synchronization to an External Clock
Optional Spread Spectrum
Shutdown Mode IQ: 10 µA Typical
Low Standby Mode IQ: 35 µA Typical
75-mV Current Limit Threshold with ±0.9% Accuracy
External Resistor or DCR Current Sensing
Output Enable Logic Input
Hiccup Mode for Sustained Overload
Power-Good Indication Output
Selectable Diode Emulation or Forced PulseWidth Modulation
Applications
Automotive Applications Including:
Infotainment Systems
– Instrumentation Clusters
– Advanced Driver Assistance Systems (ADAS)
