The LMQ61460AASRJRR is a high-performance DC/DC synchronous buck converter with an integrated bypass capacitor. The device features integrated high-side and low-side MOSFETs capable of delivering up to 6A output currents over a wide input voltage range of 3.0V to 36V. It can withstand 42V voltage, simplifying the input inrush current protection design. The device provides soft recovery of differential pressure, so there is no need to overshoot the output.

Product Specifications:

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output type: Adjustable

Output number: 1

Voltage - input (min) : 3V

Voltage - input (Max) : 36V

Voltage - output (min/fixed) : 1V

Voltage - output (Max) : 34.2V

Current - Output: 6A

Frequency - switch: 200kHz ~ 2.2MHz

Synchronous rectifier: Yes

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount, wets flanks

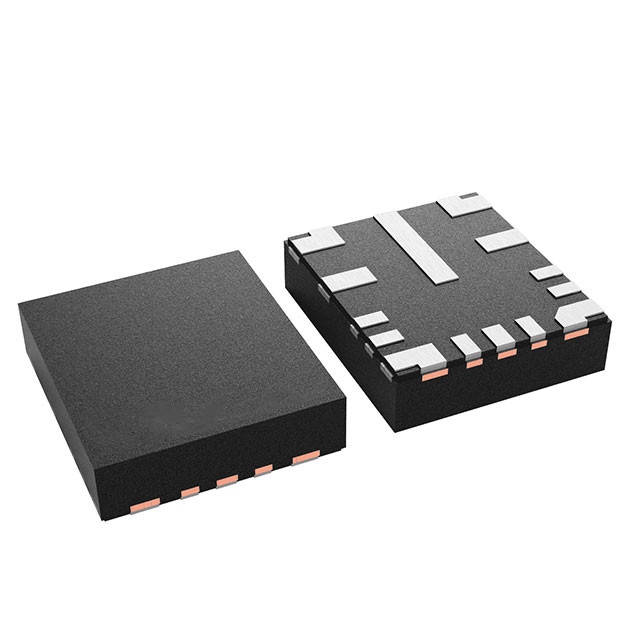

Package/case: 14-VFQFN

Supplier Package: 14-VQFN-HR (4x3.5)

Basic product number: LMQ61460
