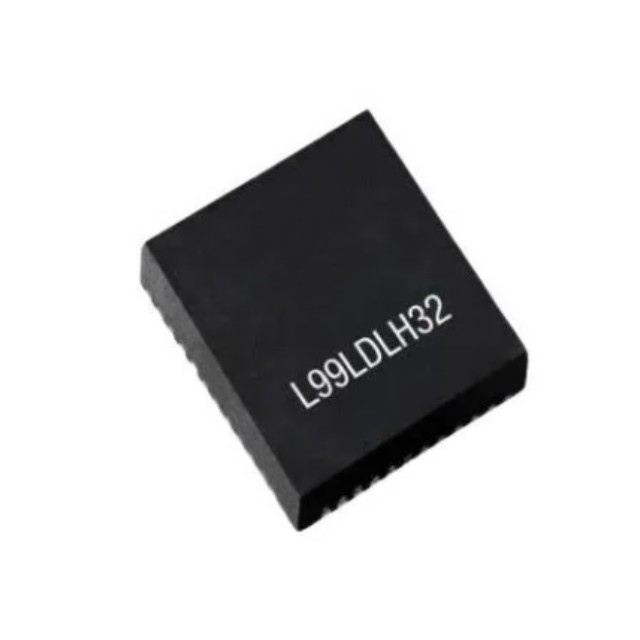

The L99LDLH32TR is a monolithic 32-channel linear current regulator designed for automotive exterior O/LED rear side lighting applications. Due to the high-side configuration of the output channels, it is suitable for driving OLED panels with common cathode. It is guaranteed to provide up to 35 V output drive capability - covering a wide range of OLED forward voltages - and features 32 regulated current sources capable of delivering 1 mA-15 mA individually programmable currents to drive each pixel of the OLED panel independently. Another device in the same family (L99LDLL16) integrates a reliable, purely automotive CAN FD Light-compatible communication interface for high-rate data transfer (up to 1 mbit /s) and uses the CAN FD architecture for long frames. In addition to the CAN FD Light-compatible physical layer, the device also integrates a protocol handler, so that no additional external devices are required to communicate with the Commander ECU. the L99LDLH32TR can be operated in bus mode using the CAN FD Light-compatible interface or in standalone/fail-safe mode using the internal finitely programmable (FTP) memory register. fail-safe mode.

Features

AEC-Q100 certified

Conventional

CAN in Automation (CiA) provides CAN FD Light-compatible serial interface, protocol handler, draft specification proposal (DSP)

Integrated high precision oscillator, no external quartz required

QFN48L 7x7 with bare pads

Timeout watchdog with "limp home" function

Low standby current

Standalone/fail-safe and bus mode operation

Direct drive (1 direct input) for 1 function group to support ASIL requirements

Extensive configurability via embedded non-volatile and volatile memory

Operating supply voltage range: 5.5 V - 40 V

Linear regulator segment

Operating temperature range: - 40°C - 150°C

32 constant current output channels, high-side configuration

Output currents: 1 mA-15 mA, parallel outputs possible

Output voltage up to 35 V

Voltage feedback to external pre-regulator to optimise regulation voltage and thus effectively reduce overall power consumption

Channel-based current setting via 8-bit DACs

Analogue dimming, individually indexed brightness control of 8-bit PWM channels and 8-bit global PWM dimming

Programmable PWM frequency

Slow turn-on/off times, progressive output delays and noise handling clocks to optimise EMC performance

Protection and diagnostics

Integrated 8-bit ADC for comprehensive and flexible diagnostics

1 dedicated line for fault bus

Temperature warning (1 threshold)

Thermal shutdown

Short circuit and open load detection and protection

Automatic LED current derating via external NTC measurement and device junction temperature (TJ)

Applications

Automotive OLED Rear Lighting

Automotive ambient lighting
