The L99LD20Q6TR is a flexible LED driver designed to control two independent strings of high brightness LEDs in automotive front lighting applications. It consists of a high efficiency monolithic dual buck converter.

The buck converter integrates n-channel MOSFETs driven by bootstrap circuits.

Specification

Product Category: LED Lighting Drivers

Series: L99LD20

Mounting Style: SMD/SMT

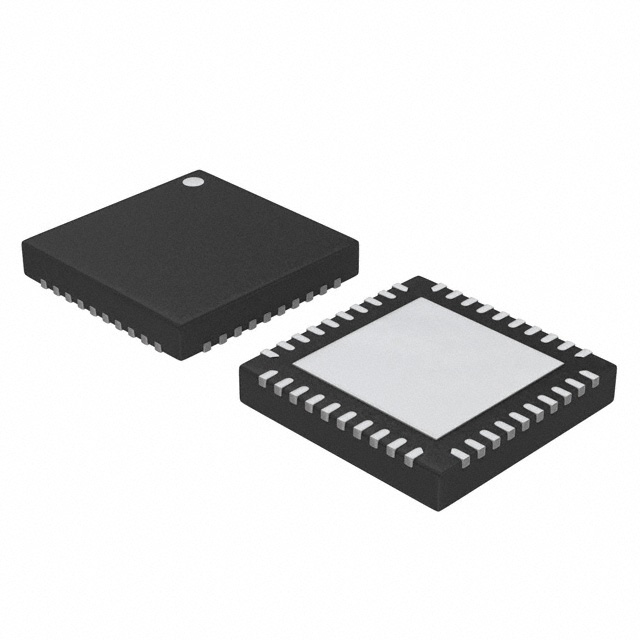

Package / Case: QFN-40

Number of Outputs: 2 Outputs

Output Current: 1.5 A

Input Voltage (min): 5.5 V

Input voltage (max): 24 V

Topology: Buck

Operating Frequency: -5 V

Output voltage: 50 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 150 C

Qualification: AEC-Q100

Features: Integrated MOSFET

Input Voltage: 5.5 V to 24 V

Humidity Sensitivity: Yes

Number of Channels: 2 Channel

Supply Current - Max: 30 mA

Applications

Low beam

High beam

Daytime running lights

Turn indicators

Position lights

Side marker

Fog lamps
