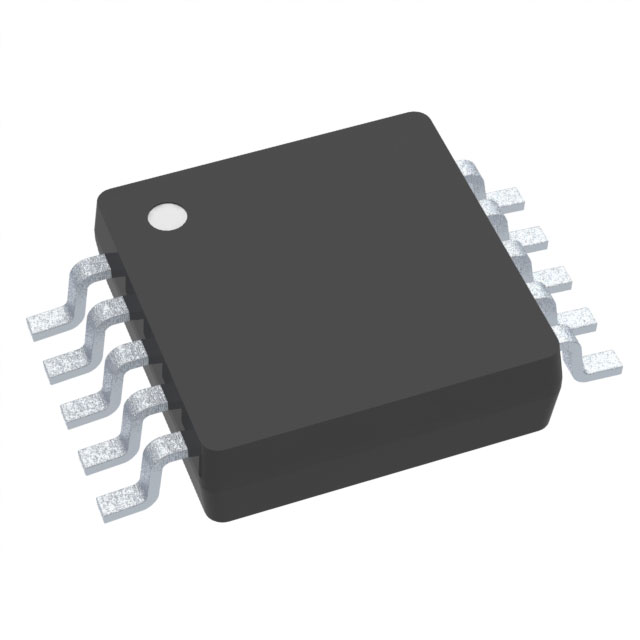

Commodity Model:INA239AQDGSRQ1

Trade Name:INA239AQDGSRQ1

Data Manual:INA239AQDGSRQ1.pdf

Brand:TI

Particular Year:23+

Package:VSSOP-10

Delivery Date:New and Original

Stock: 1698pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
INA239AQDGSRQ1
Package
VSSOP-10
Describe
AEC-Q100, 85V, 16-Bit, High Accuracy Power Monitor with SPI Interface

Product Description

The INA239AQDGSRQ1 is an ultra-precision digital power monitor with a 16-bit Δ-Σ ADC designed for current-sense applications. The device measures ±163.84mV or ±40.96mV full-scale differential inputs across a resistive shunt sense element with common mode voltage support ranging from -0.3V to +85V.


The INA239AQDGSRQ1 reports current, bus voltage, temperature, and power while performing the required calculations in the background. The integrated temperature sensor provides ±1°C accuracy for die temperature measurement and can be used to monitor the system ambient temperature.


Features

- Meets AEC-Q100 standard for automotive applications:

- Temperature class 1: -40°C to +125°C, TA

- Provides functional safety

- Documentation to aid in functional safety system design

- High-resolution, 16-bit Δ-Σ ADCs

- Current monitoring accuracy:

- Offset: ±5µV (max)

- Temperature drift: ±0.02µV/°C (max)

- Gain error: ±0.1% (max)

- Gain error drift: ±25ppm/°C (max)

- Common mode rejection: 140dB (min)

- Power monitoring accuracy:

- 0.7% full scale, -40°C to +125°C (max)

- Fast alarm response: 75μs

- Wide common-mode range: -0.3 V to +85 V

- Bus voltage sense input: 0 V to 85 V

- Shunt full scale differential range: ±163.84 mV/±40.96 mV

- Input bias current: 2.5 nA (max)

- Temperature sensor: ±1°C (max. at 25°C)

- Programmable conversion time and average value calculation

- 10MHz SPI communication interface

- Operates from a 2.7V to 5.5V supply:

- Operating current: 640µA (typical)

- Shutdown current: 5µA (maximum)


Applications

- Automotive battery management systems

- EV/HEV A-KA sensing applications

- DC/DC converters and power inverters

- ADAS domain controllers

Associated Products

Model

Brand

Package

Quantity

Describe

LTC4151IS-2

ADI

SOIC-16

10000

High Voltage I2C Current and Voltage Monitor

MAX6643LBBAEE

Maxim

QSOP-16

3000

Automatic PWM fan speed controller with overtemperature alarm output

NCV4390DR2G

ON

16-SOIC

1000

Power Controller Secondary Side Controller, Synchronous Rectifier 16-SOIC

TEA2095T/1J

NXP

8-SOIC

1000

Power Controller Secondary Side Controller, Synchronous Rectifier 8-SO

TEA2095TE/1Y

NXP

8-SOIC

1000

Green Chip Dual Synchronous Rectifier Controller

TEA9123BTY

NXP

16-SOIC

1000

Power Controller 16-SO

TEA9026T/1Y

NXP

16-SOIC

1000

Digital LLC controller for power supplies providing wide input voltage range and low standby

TEA2016AAT

NXP

SO-16

12500

Digital LLC+PFC Combination Controller for Resonant Power Supplies

LTC2977CUP

LT

QFN-64

2000

Power Supply Controller Power Supply Controller/Monitor 64-QFN (9x9)

ADP1031ACPZ-3-R7

ADI

41-VFQFN

1000

Three-Channel Isolated Micropower Management unit with seven digital isolators
