The LM61480QRPHRQ1 step-down regulator series is an automotive regulator that offers a fixed or adjustable output voltage (can be set from 1V to 95% of the expected input voltage). These regulators operate over a wide input voltage range (3V to 36V) and can withstand transient tolerances up to 42V.

Product Specifications:

Function: Depressurize

Output configuration: positive

Topology: depressurize

Output type: Adjustable

Output number: 1

Voltage - input (min) : 3V

Voltage - input (Max) : 36V

Voltage - output (min/fixed) : 1V

Voltage - output (Max) : 34.2V

Current - Output: 8A

Frequency - switch: 400kHz, 2.2MHz, 200kHz ~ 2.2MHz

Synchronous rectifier: None

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount, wets flanks

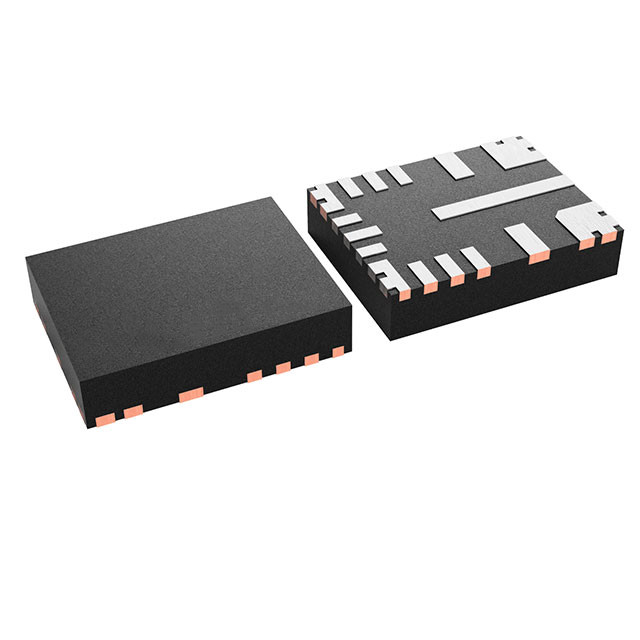

Package/case: 16-PowerVFQFN

Supplier Device package: 16-VQFN-HR (4.5x3.5)

Basic product number: LM61480
