The TPS60401QDBVRQ1 device has an input voltage range of 1.8V to 5.25V and can produce an unregulated negative output voltage. The device is usually powered by a 5 V or 3.3 V pre-tuned supply rail. Due to its wide input voltage range, it can also be powered by two or three nickel-cadmium, nickel-metal hydride or alkaline batteries and one lithium-ion battery. The TPS60401-Q1 offers a maximum output current of 60 mA with a typical conversion efficiency greater than 90% over a wide output current range.

Product Specifications:

Function: Ratio

Output configuration: positive or negative

Topology: Charging pump

Output type: Fixed

Output number: 1

Voltage - input (min) : 1.8V

Voltage - Input (Max) : 5.25V

Voltage - output (Min/fixed) : -VIN, 2Vin, Vin/2

Voltage - Output (Max) : -

Current - Output: 60mA

Frequency - Switch: 20kHz

Synchronous rectifier: None

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

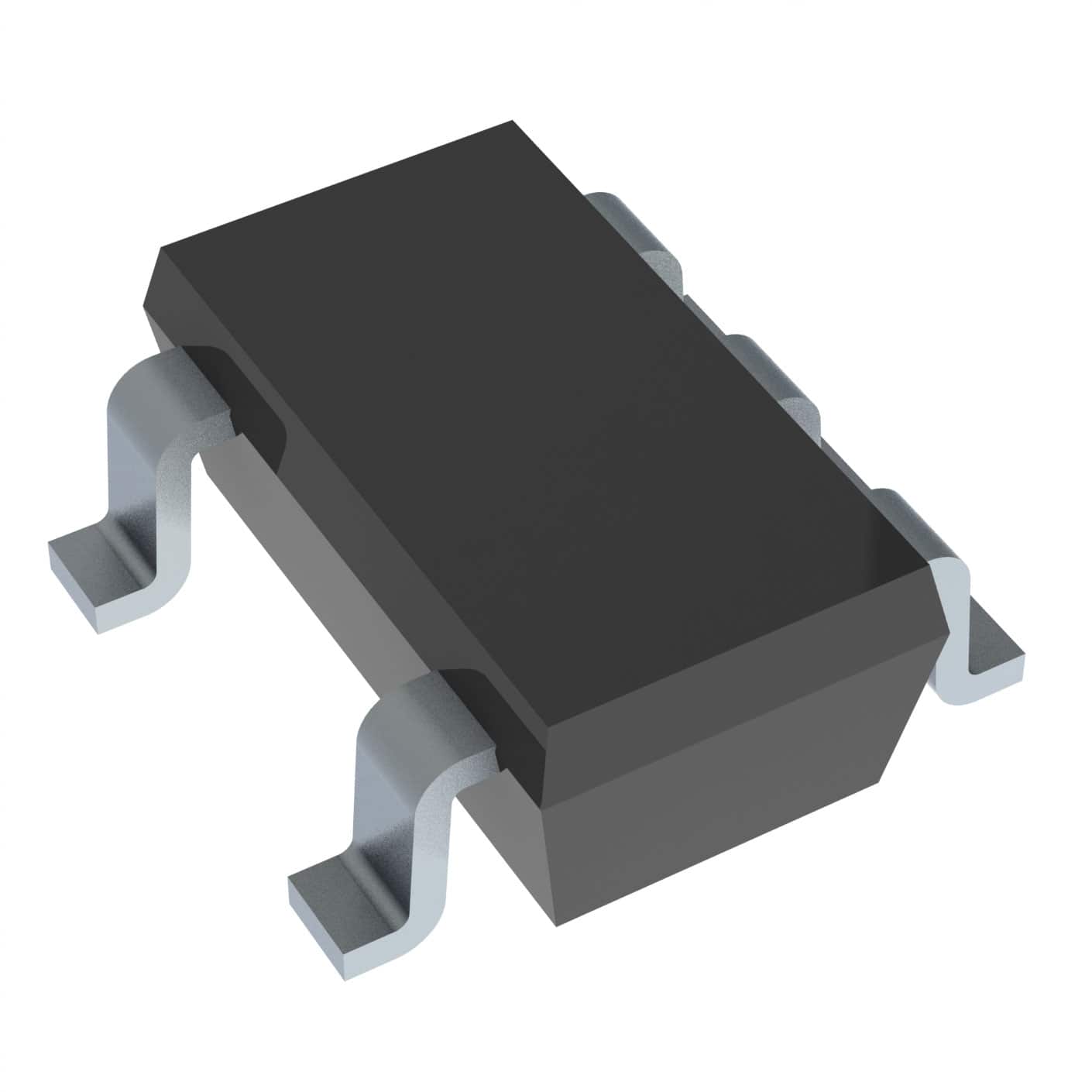

Package/housing: SC-74A, SOT-753

Supplier device package: SOT-23-5

Basic product number: TPS60401
