Service Telephone:86-755-83294757

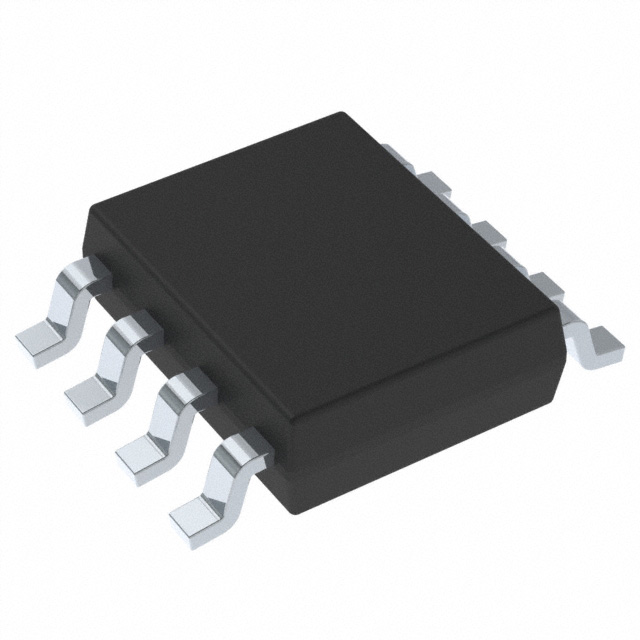

Trade Name:LM22676QMRE-ADJ/NOPB
Data Manual:LM22676QMRE-ADJ/NOPB.pdf
Brand:TI
Particular Year:23+
Package:8-SO-PowerPad
Delivery Date:New and Original
Stock: 1000pcs
The LM22676QMRE-ADJ/NOPB switching regulator provides all the features needed to achieve a highly efficient high-voltage buck regulator with a minimum of external components. The regulator is easy to use and integrates a 42V N-channel metal-oxide-semiconductor field-effect transistor (MOSFET) switch to provide up to 3A of load current. It features excellent line and load regulation and high efficiency (>90%). Voltage mode control provides a short minimum turn-on time, resulting in the widest ratio between input and output voltages. Internal loop compensation means that the user does not have the tedious task of calculating loop compensation components. The regulators are available in both 5V fixed output and adjustable output voltage options. The 500kHz switching frequency allows the use of small external components and good transient response. A precision enable input simplifies regulator control and system power sequencing. In shutdown mode, the regulator current consumption is only 25μA (typical). The built-in soft-start function (500µs typical) saves external components, and the LM22676QMRE-ADJ/NOPB also has built-in thermal shutdown and current limiting to protect the device from unintentional overload.
Product Attributes
Function: Buck
Output Configuration: Positive
Topology: Buck
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 42V
Voltage - Output (Min/Fixed): 1.285V
Voltage - Output (Max): 37V
Current - Output: 3A
Frequency - Switch: 500kHz
Synchronous Rectifier: None
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package/Housing: 8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO-PowerPad
APPLICATIONS
● Industrial control
● Telecommunications and data communications systems
● Embedded systems
● Conversion from 24V, 12V and 5V standard input power rails
