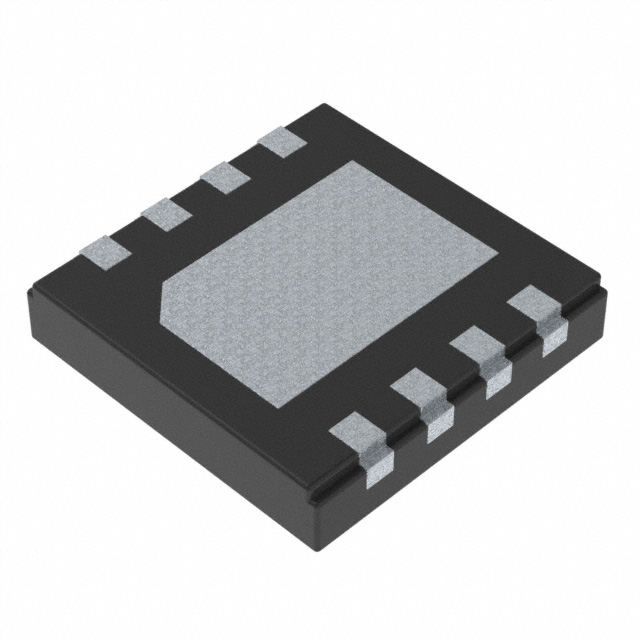

For picture reference, please see the specifications
< >

Commodity Model:LM5180QNGURQ1

Trade Name:LM5180QNGURQ1

Data Manual:LM5180QNGURQ1.pdf

Brand:TI

Particular Year:23+

Package:8-WDFN

Delivery Date:New original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LM5180QNGURQ1
Package
8-WDFN
Describe
Flyback Switching Regulator IC Positive and Negative Fixed 5V 1 Output

Product Description

LM5180QNGURQ1 is a primary-side regulated flyback converter with high efficiency over a wide input voltage range of 4.5 V to 65 V. The isolated output voltage is sampled from the primary-side flyback voltage, eliminating the need for an optocoupler, voltage reference, or third winding from the transformer for output voltage regulation.


Features

AEC-Q100-qualified for automotive applications

Device temperature grade 1: –40°C to 125°C ambient temperature range

Designed for reliable and rugged applications

Wide input voltage range of 4.5 V to 65 V

Robust solution with only one component crossing the isolation barrier

±1.5% total output regulation accuracy

Optional VOUT temperature compensation

6-ms internal or programmable soft start

Input UVLO and thermal shutdown protection

Hiccup-mode overcurrent fault protection

–40°C to +150°C junction temperature range

Integration reduces solution size and cost

Integrated 100-V, 0.4-Ω power MOSFET

No opto-coupler or transformer auxiliary winding required for VOUT regulation

Low EMI operation to meet CISPR 25

High efficiency PSR flyback operation

Quasi-resonant switching in boundary conduction mode (BCM) at heavy load

External bias option for improved efficiency

Single- and multi-output implementations


Applications

Automotive body electronics

Automotive power train systems

Isolated bias power rails
