The TPS54262MPWPREP is a 60-V, 2-A step-down switching power supply with low-power mode. The TPS54262MPWPREP is a 60-Volt, 2-A step-down switching power supply with a low-power mode. and programmable voltage monitor with integrated NMOS switching FETs. integrated input voltage line feed-forward topology improves line transient regulation of the regulator. The regulator features cycle-by-cycle current limiting. The device also features a low-power mode that reduces the supply current to 50 µA (typical). The supply shutdown current can be reduced to 1 µA typical by pulling the EN pin low. An open-drain reset signal can be displayed when the rated output falls below the reset voltage. The open-drain reset signal is displayed when the rated output drops below the reset threshold set by the external resistor divider network. The reset threshold set by the external resistor divider network. The output voltage start-up ramp is controlled by a soft-start capacitor.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 3.6V

Voltage - Input (Max): 48V

Voltage - Output (Min/Fixed): 0.8V

Voltage - Output (Max): 18V

Current - Output: 2A

Frequency - Switch: 200kHz ~ 2.2MHz

Synchronous Rectifier: None

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

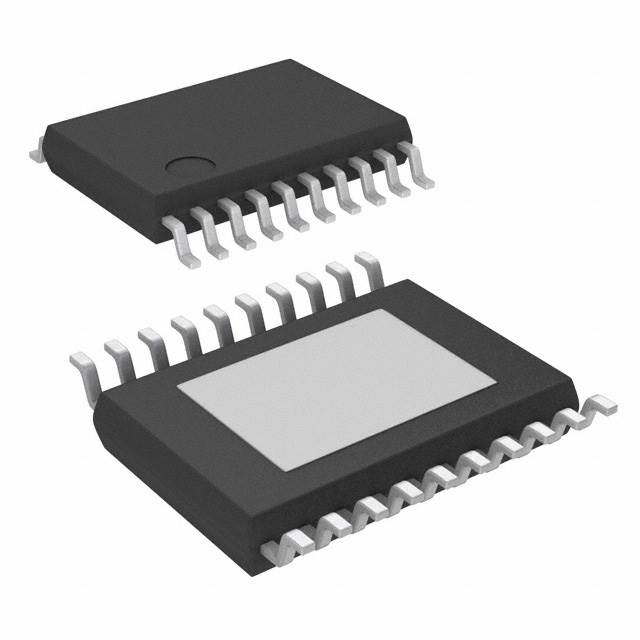

Package/Shell: 20-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package: 20-HTSSOP

Applications:

● Controlled baselines

● Assembly/test sites

● Manufacturing sites
