Trade Name:TPS62243QDDCRQ1
Data Manual:TPS62243QDDCRQ1.pdf
Brand:TI
Particular Year:23+

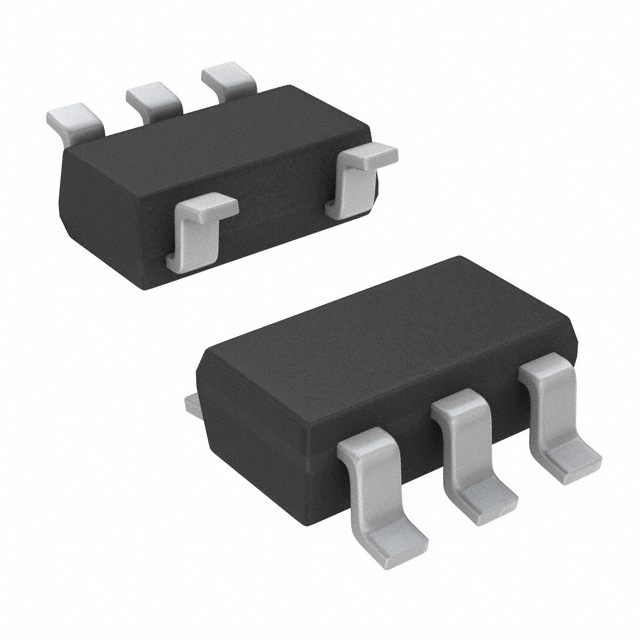

Package:SOT-23-THIN
Delivery Date:New and Original
Stock: 1000pcs
The TPS62243QDDCRQ1 are high efficiency synchronous DC/DC buck converters that provide a fixed output voltage and up to 300 mA of output current. These devices have low power consumption and are suitable for battery-powered/always-on automotive applications such as Remote Keyless Entry (RKE) or Passive Entry Start (PEPS) fob and base stations. The devices have an input voltage range of 2 V to 6 V and support applications powered by Li-Mn batteries. Applications powered by lithium-manganese coin cells, lithium-ion batteries, two (2S) and three (3S) alkaline batteries, (3S) alkaline batteries, and 3.3 V and 5 V input voltage rails are supported. Operation The TPS62243QDDCRQ1 operates at a fixed switching frequency of 2.25 MHz at high load currents and operates at a 2.25-MHz fixed switching frequency at high load currents and enters power-saving mode operation at light load currents, thereby maintaining high efficiency and low power consumption throughout the operating time.
Product Attributes
Function: Buck
Output Configuration: Positive
Topology: Buck
Output Type: Fixed
Number of Outputs: 1
Voltage - Input (Min): 2V
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 1.8V
Voltage - Output (Maximum): -
Current - Output: 300mA
Frequency - Switch: 2.25MHz
Synchronous Rectifier: Yes
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package/Shell: SOT-23-5 Fine, TSOT-23-5
Supplier Device Package: SOT-23-THIN
Applications
● Remote Keyless Entry (RKE)
● Passive Entry Passive Start (PEPS)
● Advanced Driver Assistance Systems (ADAS)
