Trade Name:TPS65263QRHBRQ1
Data Manual:TPS65263QRHBRQ1.pdf
Brand:TI
Particular Year:23+

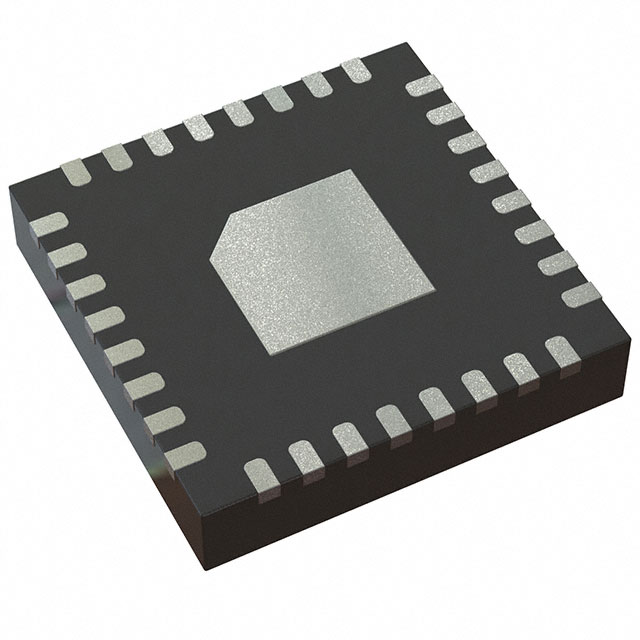

Package:32-VQFN
Delivery Date:New and Original
Stock: 1000pcs
The TPS65263QRHBRQ1 integrates a triple-synchronous buck converter with a wide 4.0 to 18 V input voltage. The converter features a constant-frequency peak current mode converter designed to simplify its application, while designers can optimise the system for the target application. The converter's switching frequency is adjustable from 200 kHz to 2.3 MHz. kHz to 2.3 MHz. 180° out-of-phase operation between Buck 1 and Buck 2, and Buck 3 (in-phase operation of Buck 2 and Buck 3) minimises input filter requirements. The initial start-up voltage of each buck can be set using an external feedback resistor. External feedback resistor. The output voltage of Buck 2 is dynamically adjustable from 0.68 to 1.95 V in 10 mV steps. The output voltage can be dynamically adjusted in 10 mV steps from 0.68 to 1.95 V via the I2C-controlled 7-bit VID. The VID voltage transition slew rate can be optimised for overshoot/undershoot during VID voltage transitions via the 3-bit control on the I2C bus.
Product Attributes
Function: Buck
Output Configuration: Positive
Topology: Buck
Output Type: Programmable
Number of Outputs: 3
Voltage - Input (Min): 4V
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 0.68V
Voltage - Output (Max): 6.3V
Current - Output: 3A, 2A, 2A
Frequency - Switch: 200kHz ~ 2.3MHz
Synchronous Rectifier: Yes
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Package/Shell: 32-VFQFN Exposed Pad
Supplier Device Package: 32-VQFN (5x5)
Applications
● Automotive
● Car audio and video
● Home Gateway and Access Point Networks
● Surveillance
