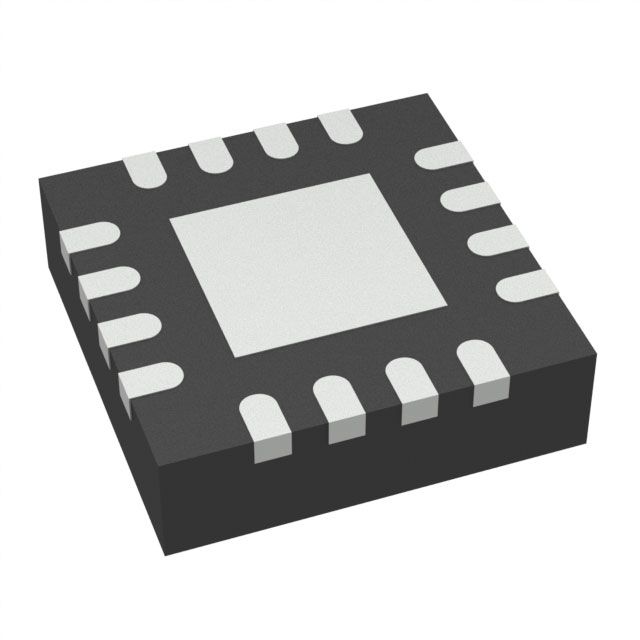

LM51571QRTERQ1 device is a wide input range, nonsynchronous boost converter with integrated 50-V,6.5-A or 50-V, 4.33-A power switch.

The device can be used in boost, SEPIC, and flyback topologies. The device can start up from a single-cell battery with a minimum of 2.9 V. It can operate with the input supply voltage as low as 1.5 V if the BIAS pin is greater than 2.9 V.

Features

AEC-Q100 qualified for automotive applications

Functional Safety-Capable

Suited for wide operating range for car battery applications

2.9-V to 45-V input operating range

48-V maximum output

Input transient protection up to 50 V

Maximum switching frequency up to 2.2 MHz

Minimized undershoot during cranking

Selectable dual random spread spectrum

Higher efficiency with low-power dissipation

Fast switching, small switching loss

Avoid AM band interference and crosstalk

Optional clock synchronization

Integrated protection features

Constant current limiting over input voltage

Selectable hiccup mode overload protection

OVP protection

Thermal shutdown

Accurate ±1% accuracy feedback reference

Adjustable soft start

Applications

Battery-powered wide input boost, SEPIC, flyback converter

Automotive voltage stabilizer in SEPIC

Automotive start-stop application

Automotive emergency call application/backup battery booster

High voltage LiDAR power supply

Automotive LED bias supply

Multiple-output flyback without optocoupler

Holdup capacitor charger

Audio amplifier power supply

Piezo driver/motor driver bias supply
