LM536015QDSXRQ1 Synchronous Buck Regulator Device Optimised for Automotive ApplicationsProvides 5 V, 3.3 V, or Adjustable Output Voltage Load Current up to 650 mA.The LM536015QDSXRQ1 supports load currents up to 650 mA. Advanced High-Speed CircuitryThe LM536015QDSXRQ1 can regulate from an 18 V input to a 3.3 V output at a fixed voltage and a fixed frequency of 2.1 MHz.The innovative architecture allows the device to regulate from an input voltage of only 3.3 V to an output voltage of 3.3 V. The device has a voltage range of up to 36 V. The transient voltage range is up to 5 V, 3.3 V, or 3.3 V. Voltage ranges up to 36 V and transient tolerances up to 42 V simplify input surge protection design. Open-drain reset outputs with filtering and delayed release. This feature eliminates the need for additional supervisory components, saving cost and board space. seamless transitions between PWM and PFM modes are ensured with a quiescent current of only 23 µA. High efficiency and excellent transient response at load. Compact PCB layout with very few external components. The LM536015QDSXRQ1 is rated Q1 over the -40°C to 150°C temperature range.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Fixed

Number of Outputs: 1

Voltage - Input (Min): 3.8V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 5V

Voltage - Output (Maximum): -

Current - Output: 1A

Frequency - Switch: 2.1MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

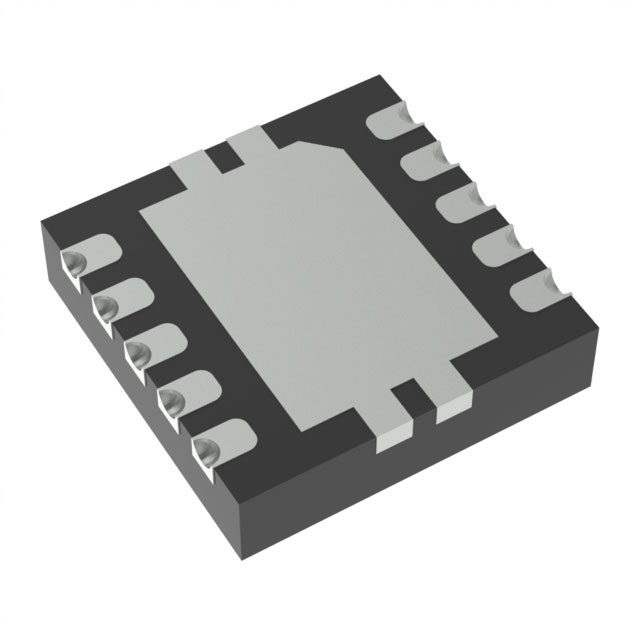

Package/Shell: 10-WFDFN Exposed Pad

Supplier Device Package: 10-WSON (3x3)

Applications

● Automotive Camera Applications

● Automotive Driver Assistance Systems

● Automotive Body Applications
