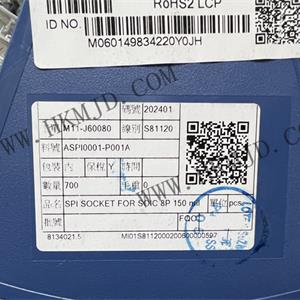

ASPI0001-P001A: SPI Socket (SPI 8Pin_IC 150mil) — 8 (2 x 4) Positions, SOIC Socket, Surface Mount

Model: ASPI0001-P001A

Package: 8POS

Type: Connector — SPI Socket

ASPI0001-P001A Specifications:

Positions or Pins (Grid): 8 (2 x 4)

Pitch - Mating: 0.050" (1.27mm)

Contact Surface Finish - Mating: Gold

Contact Surface Finish Thickness - Mating: 1.00µin (0.025µm)

Contact Material - Mating: Phosphor Bronze

Mounting Type: Surface Mount

Features: Board-to-Rail, Enclosed Frame

Termination: Solder

Pitch - Pins: 0.050" (1.27mm)

Contact Surface Finish - Pins: Gold

Contact Surface Finish Thickness - Pins: 1.00µin (0.025µm)

Contact Material - Pins: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Material Flammability Rating: UL94 V-0

Contact Resistance: 30mOhm
