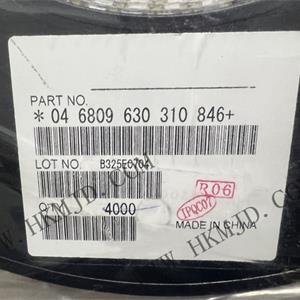

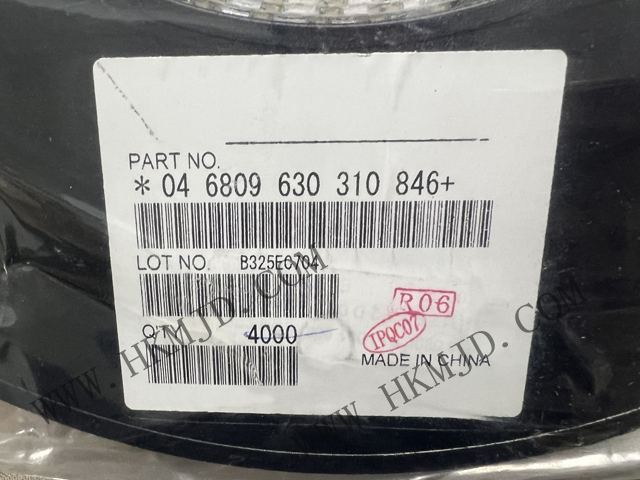

046809630310846+: FPC/FFC Connectors - 6809 Series FFC, FPC (Flat Flexible) Connectors, 30POS

Model: 046809630310846+

Package: 30POS

Type: FFC, FPC (Flat Flexible) Connector

Overview:

046809630310846+ is the 6809 series of FPC/FFC connectors. The 6809 series features measures designed to minimize connector breakage due to human error, providing greater ruggedness. These low-profile models have a pitch of 0.5mm, a bottom contact, front-flip transition, and a mounting area height of 0.93mm, allowing them to be used with FPC/FFCs up to 0.3mm thick.046809630310846+ is suitable for smartphones, tablets, laptops, audio equipment, industrial equipment, and more.046809630310846+ is the first connector in the 6809 Series to be released in the market.

046809630310846+ Specifications:

Flat Flex Type: FFC, FPC

Mounting Type: surface mount, right angle

Connector/Contact Type: contact, bottom

Number of Pin Positions: 30

Pitch: 0.020" (0.50mm)

End Connections: soldered

FFC, FCB Thickness: 0.30mm

Height on Board: 0.037" (0.95mm)

Locking Function: Trigger Lock

Cable End Type: Notched

Contact Material: Copper Alloy

Contact Finish: Gold Plated

Case Material: Plastic

Features: Fixed Solder Tail, Zero Insertion Force (ZIF)

Rated Voltage: 50V

Operating Temperature: -40°C ~ 85°C

Rated Current (Amps): 0.5A
