G846A162211T4EU: 16POS, AgilLink™ 1.0mm wire-to-board connector

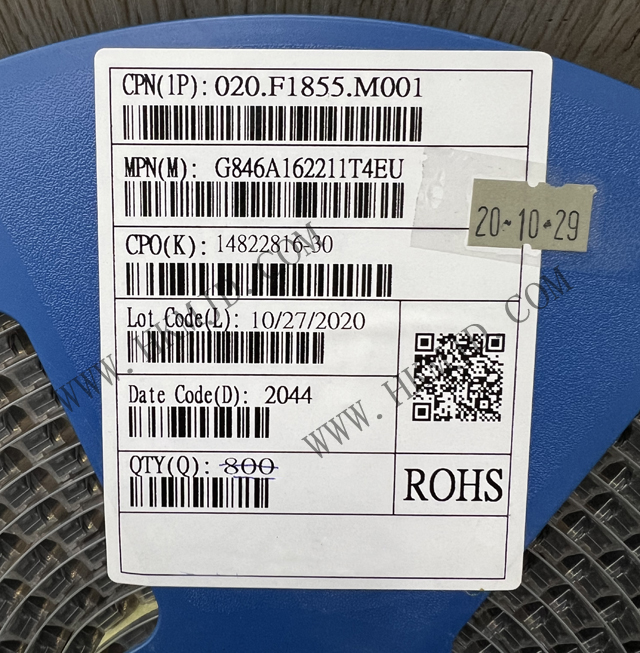

Model: G846A162211T4EU

Package: 16POS

Type: Wire-to-Board Connector

Product Description: G846A162211T4EU is an AgilLink™ 1.0mm Wire-to-Board Connector - Wire-to-Board 1.0mm pitch, vertical surface mount, 2x8 pins, 15μin Gold, NY9T, T&R W/CAP, latch type, black, halogen-free. AgilLink™ 1.0mm wire-to-board connectors represent the most common solution for transmitting power and signals. This series carries a maximum current rating of 1A.

G846A162211T4EU Specifications:

Rated Current: 1A AC/DC

Rated Voltage: 50VAC/VDC

Temperature: -25°C to +85°C

Contact Resistance: Maximum 20mΩ

Insulation Resistance: Minimum 100MΩ

G846A162211T4EU Product Features:

1.0mm pitch for space-saving design

Latching option

Supports PiP process

Convenient pin insertion on PCB with high retention force

Flat option

Multiple mounting options including single/double row vertical SMT and right-angle SMT

High-temperature thermoplastic material

Latching design

Mates with connectors WTB G846 and G842

G846A162211T4EU Applications:

Communications

Consumer

Servers

Storage, Industrial & Instrumentation

Medical
