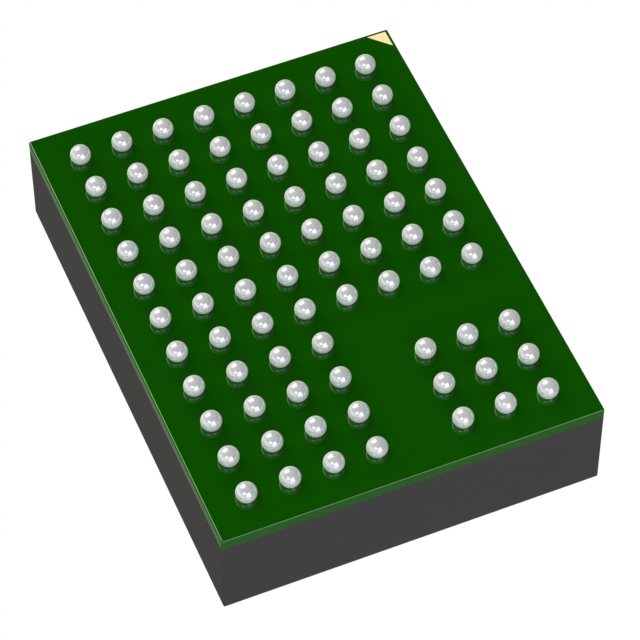

LTM8052IV: 36VIN, 5A, Two-Quadrant CVCC Buck μModule® Regulator (Absorbs and Provides Output Current Primarily for Voltage Regulation)

Overview:

The LTM8052IV is a 36VIN, 5A, two-quadrant constant voltage, constant current (CVCC) μModule buck regulator. It operates over a 6V to 36V input voltage range and supports an output voltage range of 1.2V to 24V. The LTM8052IV can absorb or supply current to maintain voltage regulation within positive and negative current limits. The output current limit can be set by a control voltage, a single resistor, or a thermistor. The LTM8052IV features 125% output overvoltage protection (unlike the LTM8052A), allowing operation when the output exceeds the target regulated point.

LTM8052IV Product Attributes:

Series: µModule®

Type: Non-isolated PoL module

Number of outputs: 1

Voltage - Input (minimum): 6V

Voltage - Input (maximum): 36V

Voltage - Output 1: 1.2 to 24V

Current - Output (maximum): 5A

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

Package/Case: 81-BLGA Module

Supplier Device Package: 81-LGA (15x11.25)

LTM8052IV Product Features:

Complete buck-type switch-mode power supply

CVCC: Constant Voltage Constant Current

Two-quadrant: supply and sink output current

Adjustable output current

Wide input voltage range: 6V to 36V

1.2V to 24V output voltage

Forced continuous operation

Selectable switching frequency: 100kHz to 1MHz

Package with gold-plated pads and compliant with (e4) RoHS standards

Programmable soft start
